5L Battery Mixing Machine , Slurry Filtration Equipment Magnetic De Ironing

  • 5L Battery Mixing Machine , Slurry Filtration Equipment Magnetic De Ironing
  • 5L Battery Mixing Machine , Slurry Filtration Equipment Magnetic De Ironing
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-GLCT5
Minimum Order Quantity 1 Sets
Price USD3200-4300/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-GLCT5 Max. Loading Capacity 5L
Voltage 110V/220V Power 300W
Package Size 500mm(L) X 300mm(W) X 850mm(H) Weight 30kg
High Light

Magnetic De ironing Filtration System

,

De Ironing Battery Mixing Machine

,

Battery Slurry De ironing Filtrater
Leave a Message
Product Description

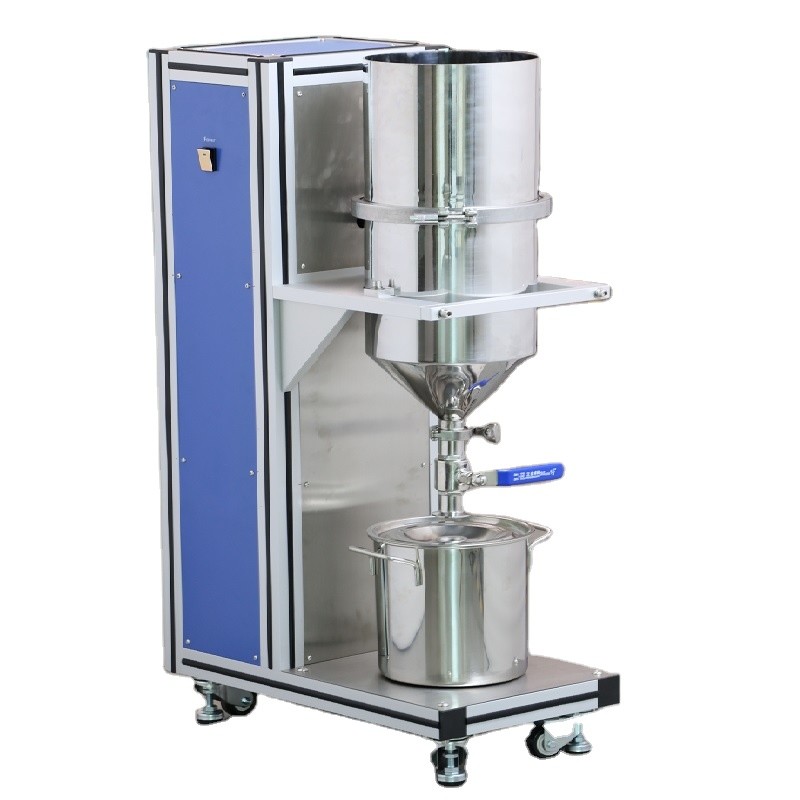

  • Magnetic De-ironing Filtrater Filtration System For Lithium Battery Electrode Slurry

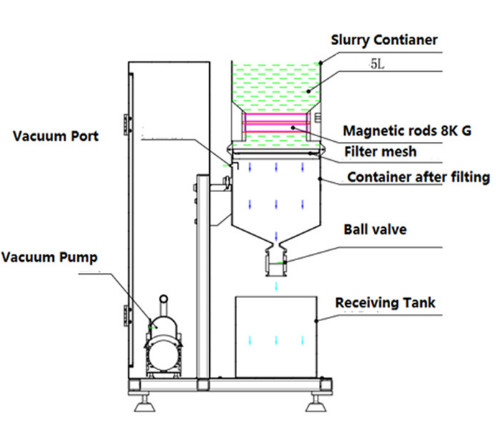

ZK-GLCT5 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.



Model ZK-GLCT5
Voltage supply 110Vac - 240Vac universal power
Power 50W
Working Temperature <=40°C
Process Capacity 5L
Magnetic Field Strength 8000 G
Filter 3 mesh filters: 80, 100, 120
Structure Containers Made of Stainless Steel 304
Slurry Viscidity <=15000CP
Humidity 0-90%RH
Deironing Function 8000-10000 GC
Overall Dimensions 500mm(L) x 300mm(W) x 850mm(H)
Shipping Weight & Dimension 130 lbs, 48"x40"x43"
Compliance

CE Certified

CE, TUV, UL, CSA certified in power supply

Machine is safe 24VDC input , which can be used without any safety certification
Warranty Two years limited with lifetime support
