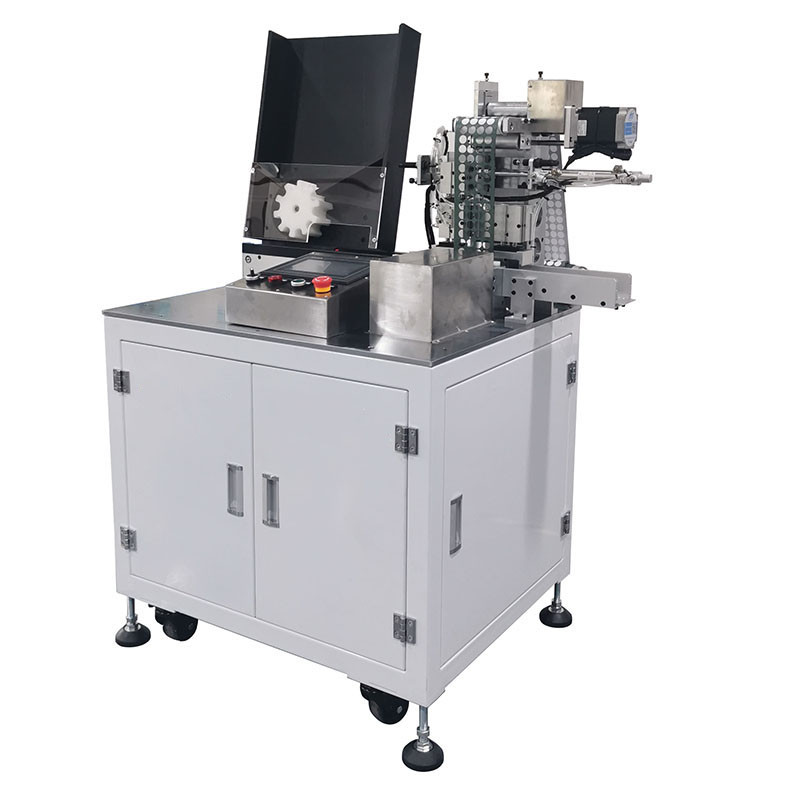

Automatic Battery Production Machine for sticking insulation paper 1KW 220V

  • Automatic Battery Production Machine for sticking insulation paper 1KW 220V
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-TZ01
Minimum Order Quantity 1 Sets
Price USD10000-15000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-TZ01 Power 1KW
Voltage 220V Working Air Source 0.4-0.6Mpa
Dimension(L*W*H) 1200*850*1650MM(L*W*H) Weight 400kg
High Light

Automatic sticking insulation paper machine

,

Cylindrical Cell Sticking Machine

,

Cylindrical battery pack equipment
Leave a Message
Product Description

  •

  • Cylindrical battery automatic sticking insulation paper machine

  •

Features:

1. The effect of the pad is good, standard, beautiful in appearance, not easy to fall off.

2. The equipment automatically alarms for faults, and clears the faults according to the prompts.

3. The equipment is easy to debug, easy to learn and understand, and the model change is simple and fast.

4. High sorting efficiency, about 4000 cells can be sorted per hour. Description: working mode stepper motor plus pneumatic, surface pad material, highland barley paper or PVC material. The maximum diameter of the highland barley paper roll is 350mm, and the inner diameter of the paper roll core is 72-75mm. Putting the cell hopper, 400 cells can be put in at one time, and it can be put in sections. Scope of application: suitable for the positive or negative pole of cylindrical 18650/21700/26650 cells to automatically paste highland barley paper pads or PVC materials

1
Model specifications
ZK-TZ01
2
power
1KW
3
Voltage
220V
4
Working air source
0.4-0.6Mpa
5
Sorting efficiency
80PPM
6
equipment weight
400KG
7
Material Specification Requirements
The maximum diameter of the coil is 350MM, and the inner diameter of the core
72-75MM, width 100MM
8
pad power
 Electric, variable frequency speed regulation
9
Feeding method
18650 or 21700 or 26650 or 32700 finished cells, can be customized
