Transparent Acrylic Glove Box For Lithium Battery CE ISO certificate

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-AGB-2B
Minimum Order Quantity 1 Set
Price 1800
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Texture Of Material Texture Of Material
High Light

Glove Box

,

Acrylic Glove Box Inert Gas Chamber

Leave a Message
Product Description

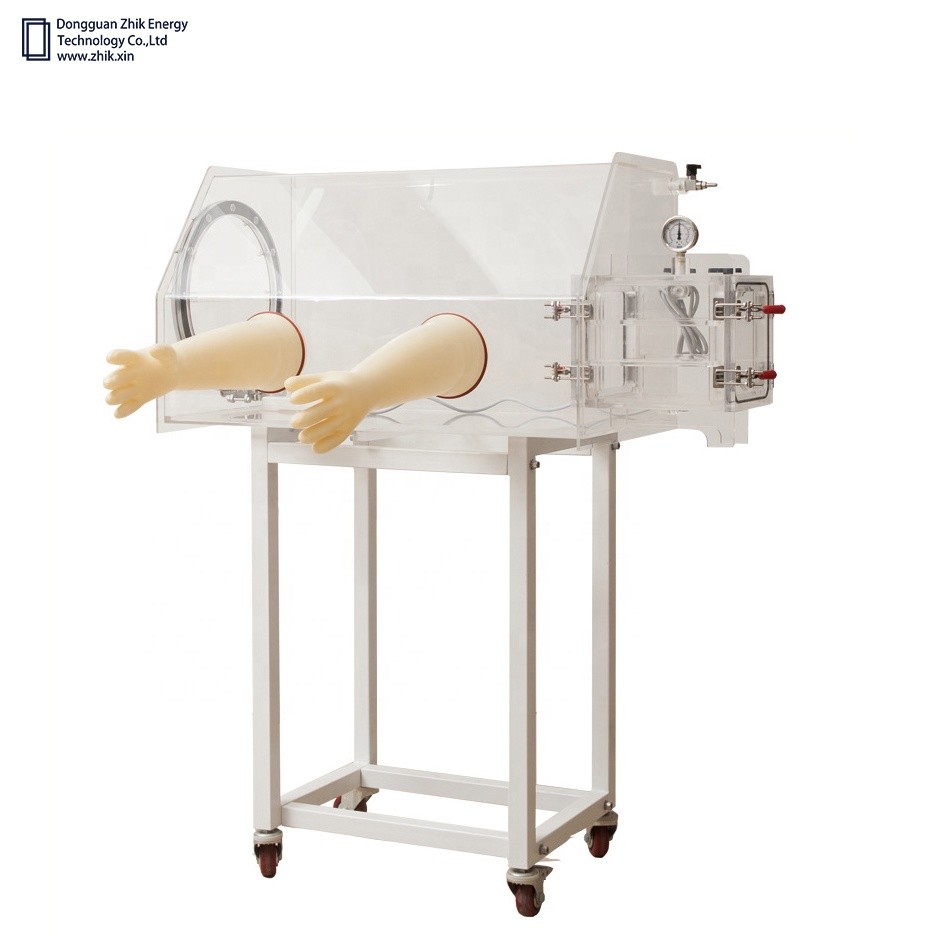

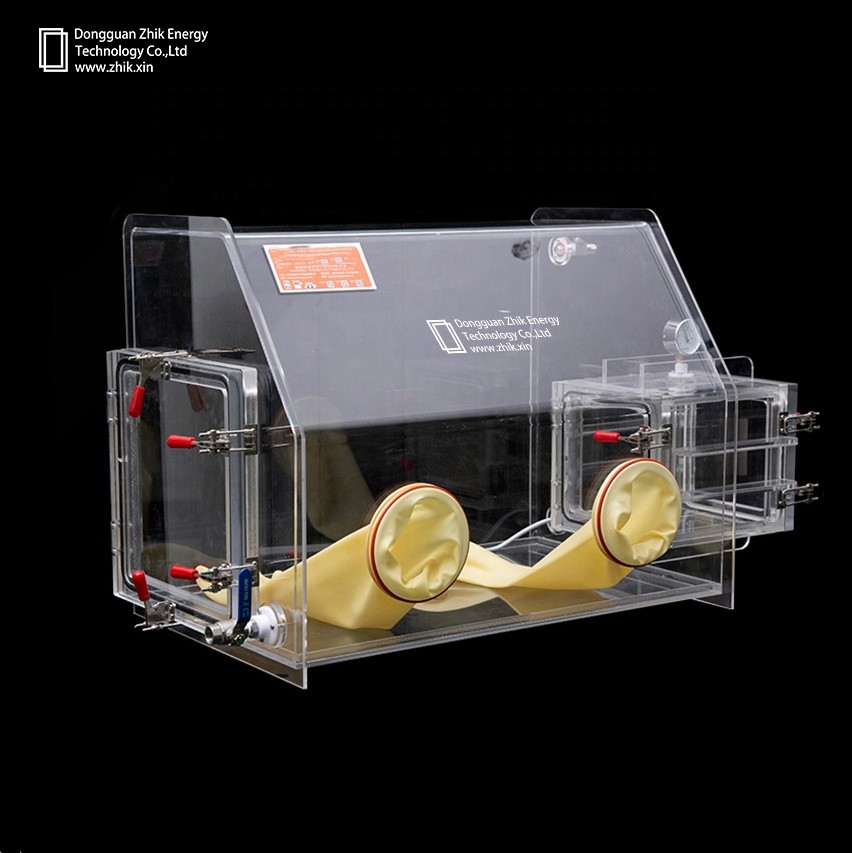

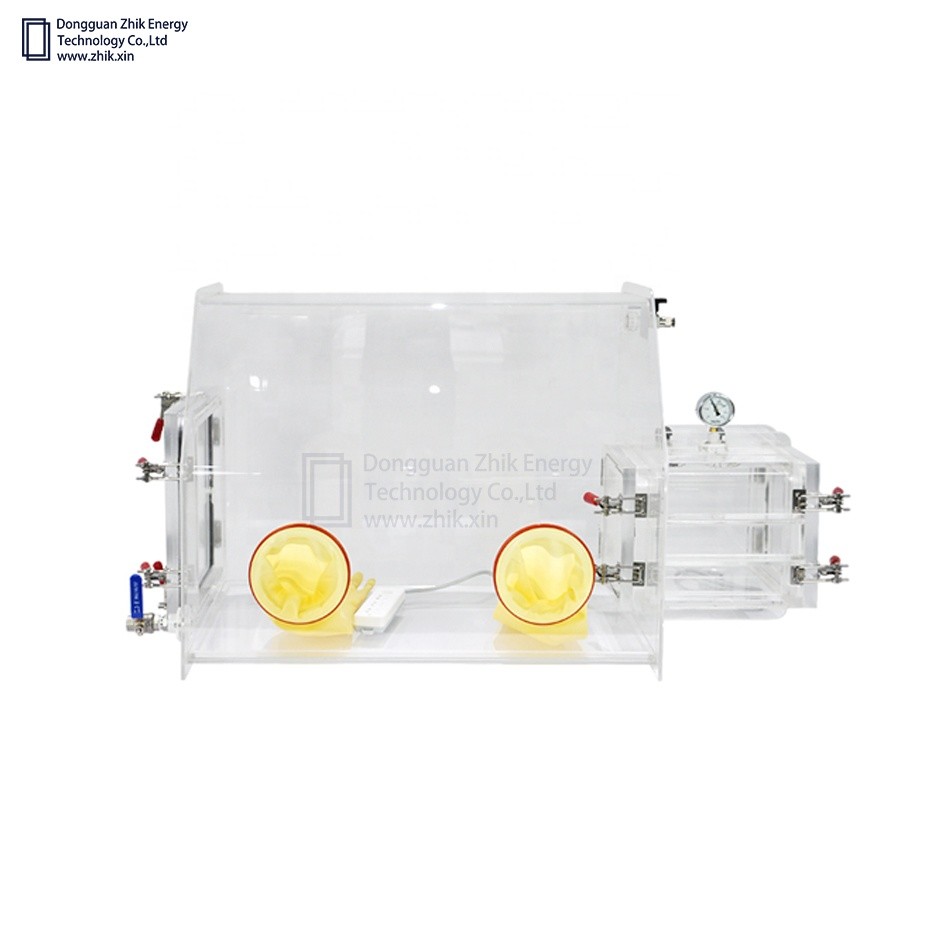

Lab Bench-top lithium battery research transparent Acrylic Glove Box
Product Description

Main features: 1. Box - acrylic material, 6mm thick, transparent color; 2. Window - you can clearly view the experimental process from any angle; 3. The power supply - box is equipped with porous power sockets to meet the use of customers' internal instruments; 4. Gloves - the operating hand box adopts industrial grade corrosion-resistant latex gloves, and the glove mouth is fixed with sealing ring; 5. Ball valve - the inlet and outlet balloons are made of 304 stainless steel. Water nozzles are installed inside and outside the valve for water inlet and air inlet. Some instruments (such as spin coating instrument) can be placed in the box for vacuum pumping;



Transparent Acrylic Glove Box For Lithium Battery CE ISO certificate 0



Technical Parameter
Type A
model
Main box size(mm)
thickness(mm)
Side door size (mm)
Vacuum degree (PA)
Size of transition bin (mm)
AGB-1A
300*400*500
6
300*300
+-1000
No
AGB-2A
700*450*550
AGB-3A
800*550*600
AGB-4A
900*500*500
AGB-5A
900*600*700
AGB-6A
1000*750*700
AGB-7A
1100*650*600
AGB-8A
1200*800*700
Type B
model
Main box size(mm)
thickness(mm)
Side door size (mm)
Optional
Vacuum degree (PA)
Size of transition bin (mm)


6
300*300
+-1000
240*240*240
AGB-2B
700*450*550
AGB-3B
800*550*600
AGB-4B
900*500*500
AGB-5B
900*600*700
AGB-6B
1000*750*700
AGB-7B
1100*650*600
AGB-8B
1200*800*700
Type C
model
Main box size(mm)
thickness(mm)
Side door size (mm)
Optional
Vacuum degree (PA)
Size of transition bin (mm)


20
300*300
+-1000
240*240*240
AGB-2C
700*450*550
AGB-3C
800*550*600
AGB-4C
900*500*500
AGB-5C
900*600*700
AGB-6C
1000*750*700
AGB-7C
1100*650*600
AGB-8C
1200*800*700
