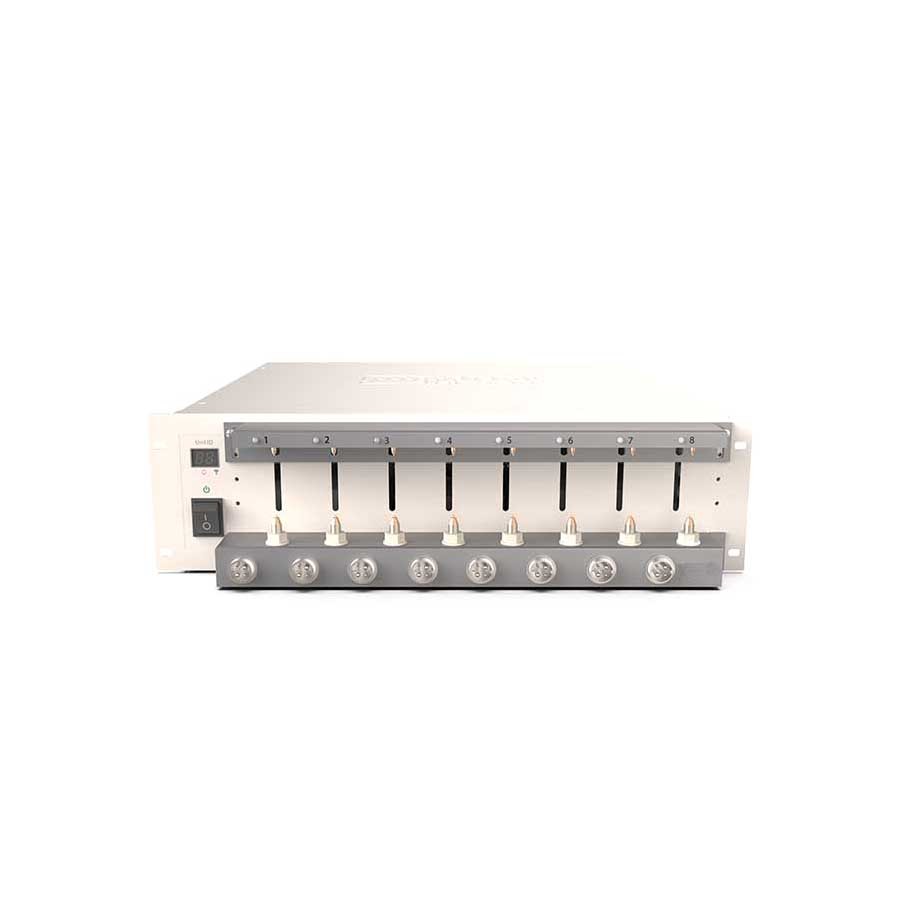

8 Channel Lithium Ion Battery Analyzer Tester 5V 6A CE cerificate
Product Details
Power | 425W | Input Resistance | ≥1MΩ |
---|---|---|---|
High Light | 8 Channel Lithium Ion Battery Analyzer,5V6A Battery capacity Tester,8 Channel battery capacity tester |
Product Description
8 Channel Lithium-Ion Battery Tester Analyzer 5V6A
Product Description
The dQ / dV curve mainly reflects the phase change of the positive and negative active materials during charging and discharging. According to the data of the button battery, we can find the phase change corresponding to the different characteristic peaks in the dV / dQ curve, and then Or we can qualitatively infer the cause of the reversible capacity loss of the lithium-ion battery during the storage process of the dQ / dV curve, and provide a reliable reference for the design of the lithium-ion battery.
BTS5V6A battery testing equipment | |||||||||
Equipment model | BTS-5V6A | battery testing equipment | material code | ct-4008 | 5V6A | ||||
Index item | index parameters | ||||||||
Input power | AC 220V ±10% / 50Hz | ||||||||
input active power | 425 | W | |||||||
Resolution AD | AD:16bit;DA:16bit | ||||||||
input impedance | ≥1MΩ | ||||||||
Voltage | constant voltage range control | 25mV~5V | |||||||
minimum discharge voltage | The two ends of the upper and lower fixture can discharge to 1.0v, and the 2m line length can be up to 1.5v | ||||||||
Accuracy | ± 0.05% of FS | ||||||||
Stability | ± 0.05% of FS | ||||||||
electricity | |||||||||
precision | ± 0.05% of FS | ||||||||
Constant voltage cut-off current | 12mA | ||||||||
stability | ± 0.05% of FS | ||||||||
power | Single channel output power | 30W | |||||||
stability | ± 0.1% of FS | ||||||||
Data records | Data recording condition | Minimum sampling time :100ms | |||||||
Minimum sampling voltage: 10mV | |||||||||
Minimum sampling current: 6mA |
|||||||||
Record the frequency | 10 hz | ||||||||
charging | Charging mode | Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging | |||||||
As conditions | Voltage, current, relative time, capacity,V | ||||||||
discharge | Discharge patterns | Constant current discharge, constant power discharge and constant resistance discharge | |||||||
As conditions |
Voltage, current, relative time, capacity, V | ||||||||
The pulse mode | charging | Constant current mode, constant power mode | |||||||
discharge | Constant current mode, constant power mode | ||||||||
Minimum pulse width | 500ms | ||||||||
The number of pulses | Single pulse workstep supports 32 different pulses | ||||||||
Charging and discharging switch continuously |
A pulse working step can realize the continuous switch from charging to discharging | ||||||||
As conditions | Voltage, relative time | ||||||||
DCIR test | Support custom pick point for DCIR calculation | ||||||||
cycle | Cyclic test range | 1~65535times | |||||||
Single cycle number of steps | 254 | ||||||||
nested loop | With nested loop function, maximum support for three levels of nesting | ||||||||
protect | Security and protection | power off data protection | |||||||
with offline testing function | |||||||||
safety protection conditions can be set, setting parameters include: voltage upper limit, voltage lower limit, current upper limit, current lower limit, capacity upper limit, delay time, protection grade IP20 | |||||||||
Channel characteristics | constant current source and constant pressure source adopt double closed loop structure | ||||||||
Channel control mode | Independent control | ||||||||
Voltage current detection sampling | Four wire connection | ||||||||
noise | <85dB | ||||||||
Leakage current | 0.005mA | ||||||||
Number of channels per unit | 8 | ||||||||
Indicators project | Index parameters | ||||||||
Operating temperature range | 0℃~40℃(within the range of 25±10℃, the measurement accuracy is guaranteed: precision drift 0.005% of FS /℃) | ||||||||
Storage temperature range | -10℃~50℃ | ||||||||
Operating environment relative humidity range | ≤70% RH(no condensation) | ||||||||
Storage environment relative humidity range | ≤80% RH(no condensation) | ||||||||
Case size per unit(W*D*H)(mm) | 3U1F,480*380*130 |
