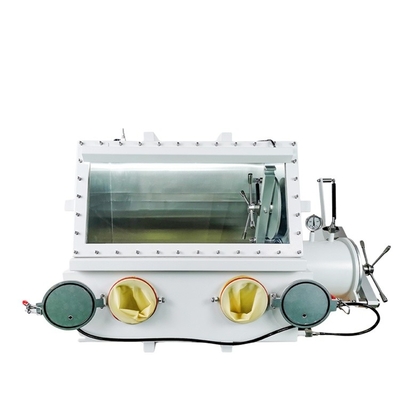

Laboratory Glove Box Vacuum Chamber humidity control for Lithium Battery OEM ODM

customized laboratory research lithium battery test humidity control vacuum glove box

Vacuum glove box, also known as vacuum inert gas glove box, in the process of scientific experiments, some substances are easily oxidized and deliquescence in the atmospheric state, which makes

The chemical reaction of the test substance and the pretreatment of the sample are very difficult, which affects the test process and test results. The vacuum glove box effectively solves

To solve these problems, the vacuum glove box can safely put in and take out the test samples, and operate and react freely in an oxygen-free and anhydrous state.

and tests to ensure the normal conduct of scientific experiments. This product is an ideal equipment for universities, scientific research units, and enterprise laboratories to carry out scientific experiments.

The vacuum glove box is widely used in biochemical, metallurgical, electronic, chemical, geological, mining, pharmaceutical and other departments.

•

• Product name: vacuum glove box

  Model: ZK-VGB1

  Material: stainless steel SUS304

  Stainless Steel Thickness (mm): 3mm

  Main box size (mm): 600*450*420mm

  Cylinder transfer cabin (mm): diameter 210mm length 260mm

  Window glass (mm): 500*165mm

  Window glass thickness (mm): 20mm

  Glove port diameter (mm): 140mm

  The highest positive pressure in the operation box: 0.06MPa

  Measurable vacuum degree: 0~-0.1MPa (Class 2.5 vacuum gauge)

  Weight: 100KG




  Features



  1 The whole box is made of 3mm thick SUS304 stainless steel plate, and the surface is treated with plastic spray, which is anti-corrosion and easy to clean.



  2 The front of the operation box is made of 20mm thick plexiglass, with a wide viewing angle and no dead ends



  3. The inlet and outlet valves are equipped with faucets inside and outside to allow water and air intake. The gas replacement speed is fast, and the experimental requirements can be met in a short time.



  4 The sealing device of the box door has a novel design, reliable sealing and easy opening.



  5 box with light and multi-hole socket



  6 The operating hand box is sealed with thick latex gloves and is reliable

•

•

•
