100mm Width Electric Roll Press Machine For Lab Battery Precision Pressure

  • 100mm Width Electric Roll Press Machine For Lab Battery Precision Pressure
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-RM100
Minimum Order Quantity 1 Piece
Price USD1600-2400/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-RM100 Effective Roll Width 100mm
Rolling Gap 0-1.2mm Adjustable Rolling Speed 0 ~ 26mm / S Adjustable
Weight 65KG Equipment Size 585x245x355
High Light

Battery Lab Equipment

,

Battery Roller Press

,

Battery Electrode Calender
Leave a Message
Product Description

  • Lab Precision Pressure Controlled Electric roller Press Battery Electric Calender Rolling Press Machine

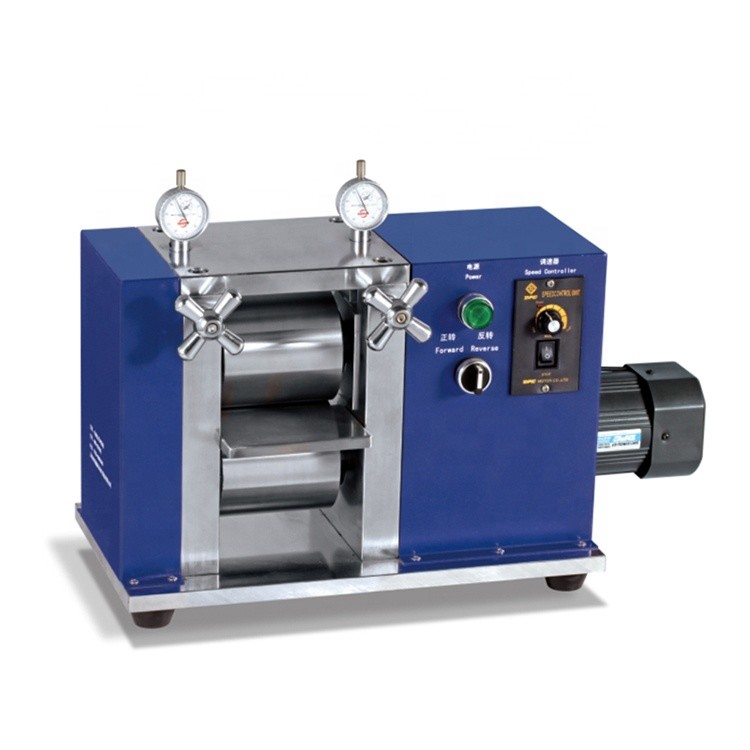

It is a electric rolling press with variable speed motor and switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers of 100 mm Dia. x 100mm width and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.





     Specification

ITEM Unit Data
Size(L*W*H) mm 585x245x355
Weight kg 65
Roll Width mm 100
Hot rolling width mm 100
Roller diameter mm 2~Φ96
Calendering thickness mm 0~2
Dial Gauge Accuracy mm +-0.005
Rolling Speed m/min 0~1.5
Surface hardness of rollers   HRC62
Total Power

AC220V,200W
