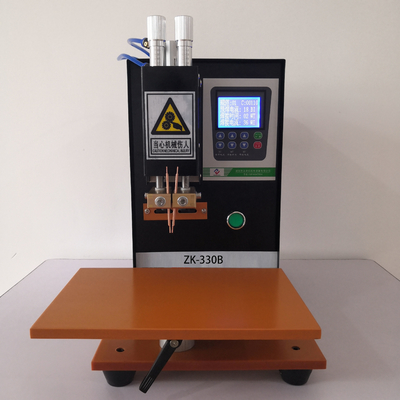

Double Needle Lithium Battery Spot Welding Machine 15KVA 110V 220V
Power Supply | AC 110V/220V ± 10% 50Hz ± 2Hz | Maximum Output Power | 15KVA |
---|---|---|---|
Pre Welding Current | 00-99 | Welding Time | 5-30 0.1ms |
Welding Stroke | 25mm, Welding Height Adjustable | After-sales Service Provided | Commissioning And Training, Online Support, Video Technical Support |
High Light | pneumatic Double Needle Spot Welder,Cylindrical battery pack spot welding machine,Desktop Pneumatic Spot Welder |
-
Lithium Battery Double Needle Spot Welder Welding Cylindrical Battery Cap And Battery Pack
-
Lithium battery double needle spot welder
一.Overview
Microcomputer high-frequency inverter spot welding machine is an advanced high-performance inverter spot welding machine, which is designed according to the principle of the most advanced spot welding machine. Using microcomputer single chip microcomputer control and AC / DC inverter technology, blue LCD large LCD display, the performance reaches the top level of resistance welding.
二.Characteristic:
1. Accurate microcomputer control: the microcomputer in the welding machine scans the input voltage at high speed for a long time. As soon as the power supply fluctuates, it immediately calculates the compensation data and changes the welding energy, so that the welding will not have false welding or fire explosion due to voltage fluctuation, so as to ensure the consistent welding effect every time, small welding spark and little impact on the battery.
2. Stable current output: because the machine is controlled by microcomputer and single chip microcomputer, the current regulation is refined to ensure the stable output current, and the control of welding discharge time is accurate and unrestricted. It can weld more than 200 times per minute, and the welding effect is consistent.
3. Simplified operation and setting: all parameters are computerized, LCD display and keyboard adjustment are adopted, which is accurate, intuitive and convenient.
三.Main technical parameters
1. Power supply: AC 110 / 220V ± 10% 50Hz ± 2Hz
2. Maximum output power: 15KVA
3. Specification: 9 sets of specifications can be stored. 1-9 long press the switch key to switch the specification number
4. Pre welding current: 00-99 welding current: 00-99
5. Welding time: 5-30 0.1ms (i.e. 0.5-3ms adjustable)
6. Welding stroke: 25mm, welding height adjustable
7. Overall weight: 58kg
8. Best use: applicable to a variety of welding pieces of 0.03 mm ~ 0.20 mm.
