Lithium Battery Welding Machine , 2600W Electrode Tab ultrasonic spot welder

• Lithium Batteries Electrode Tab 2600W Ultrasonic Welding Machine

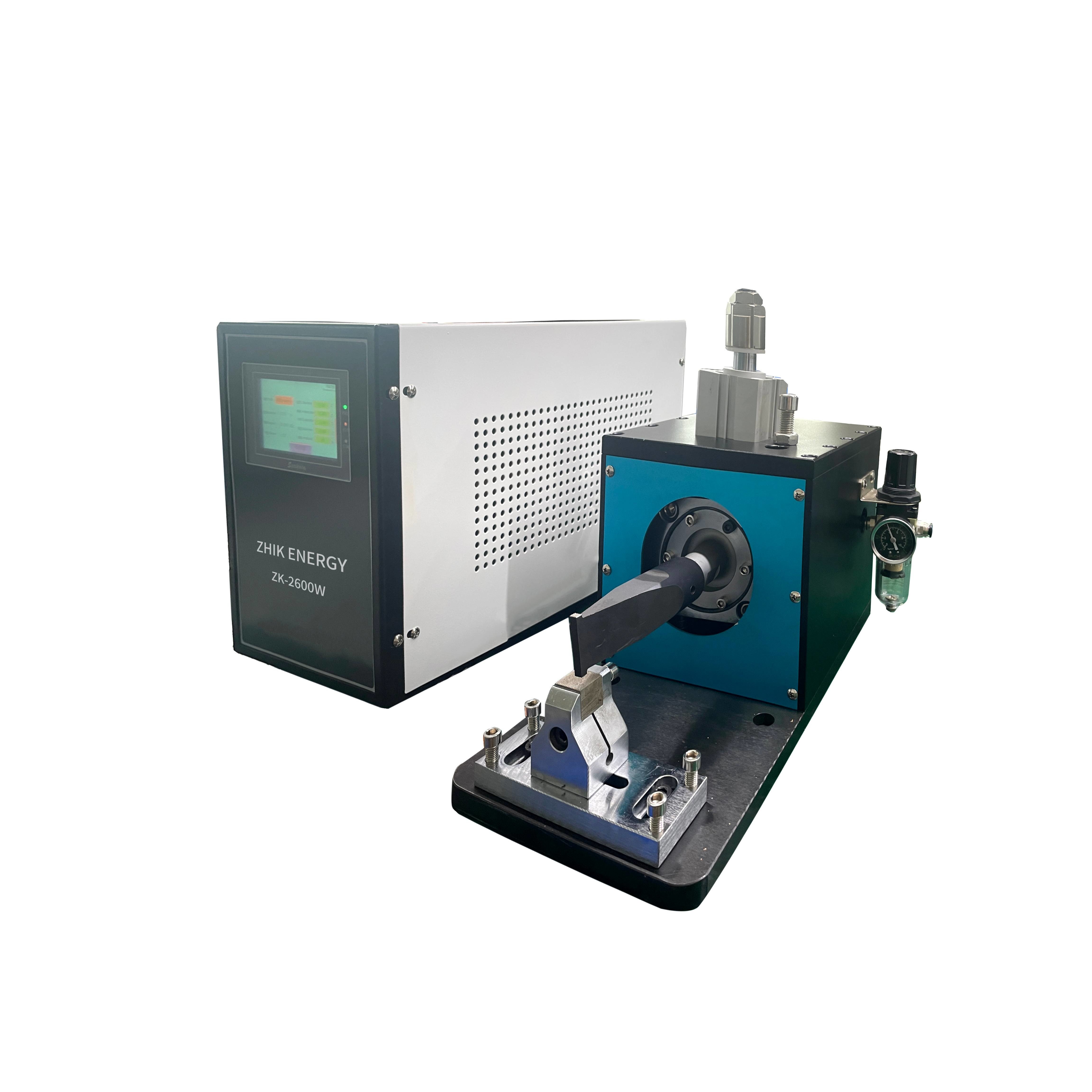

• lithium batteries electrode tab Ultrasonic welding machine ZK-2600

•

一.Application principle of ultrasonic metal welding machine

 It is mainly composed of ultrasonic generator, transducer, mold, pneumatic parts, frame, etc. The working principle is that the transducer converts the ultrasonic frequency high-power oscillation signal into the mechanical energy of the corresponding frequency and applies it to the interface of the metal sheet to be welded, so that the joint of the metal sheet can generate heat instantaneously, and then start the particles in the metal lattice, so that the molecules at the joint of the metal sheet can penetrate each other and weld together.

二.Equipment function module

1. This product is used for welding between aluminum foil and aluminum lug, copper foil and copper nickel or nickel lug;

2. The welding mode of the polar lug is transverse, and the service life of the welding surface is ≥ 100000 times;

3. The welding head is standard. The welding head is made of imported powder alloy, the height of the welding spot is 0 ~ 50mm, the upper welding head has straight grain or meter grain, and the lower mold has mesh grain. The height between the welding surface and the welding head is 0 ~ 50mm adjustable, and the welding head can use 4 welding surfaces.

4. The transducer can withstand 2600w

5. The built-in frequency of ultrasonic generator is adjustable, the switching power supply has constant voltage and current (constant amplitude), and the amplitude is stepless and adjustable;

三.Rear view:

四.General equipment configuration and standards
   4.1 equipment noise: measured at a distance of 1m from the outer wall of the equipment, and the noise during normal operation of the equipment is less than 75db.
   4.2 equipment operation environment:
   4.3 ambient temperature: 20 ± 5 ℃;
   4.4 ambient humidity: 60% RH;
   4.6 there is no corrosive gas, liquid or explosive gas on site.

五. Overall dimensions of equipment
   5.1 generator size (length x width x height): 550mm x300mm x550mm;
   5.2 head size (length x width x height): 480mm x200mm x380mm
