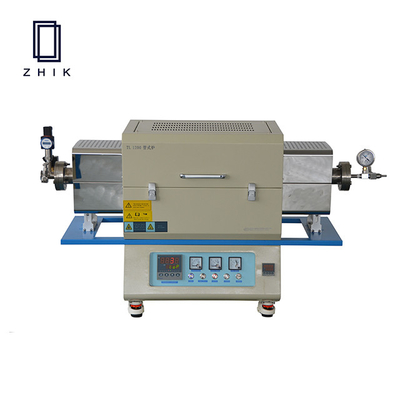

High Temperature Laboratory Tube Furnace for calcination Lithium battery 15KW 380V

  • High Temperature Laboratory Tube Furnace for calcination Lithium battery 15KW 380V
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-TL1200
Minimum Order Quantity 1 Piece
Price USD3000-4000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-TL1200 Power 15KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1150 ℃ Dimensions 2200*60*80mm(L*W*H)
High Light

1200 degrees Celsius tube furnace

,

Laboratory High Temperature Tube Furnace

,

Single Zone Tube Furnace
Leave a Message
Product Description

  • Laboratory Single Zone high temperature 1200C Tube Furnace for calcination Lithium battery positive and negative materia

  •

  • 1200 degrees Celsius tube furnace

This folio tube furnace uses resistance wire (Canthal A1, Sweden) as heating element, adopts double-layer shell structure and 30-segment temperature control system, phase-shift triggering, thyristor control, and furnace uses alumina polycrystalline fiber The material has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall, energy saving, etc. It is an ideal product for high-temperature atmosphere sintering, atmospheric reduction, CVD experiments, and vacuum annealing in universities, research institutes, and industrial and mining enterprises.





control precision
+/- 1 ℃
trigger
Phase shift trigger
Electrical appliances
Zhejiang Zhengtai
SCR
106 / 16E Germany Simon
Maximum temperature
1200 ℃
Rated temperature
1150 ℃
Heating rate
≤30 ℃ / Min (can be modified according to requirements)
Recommended heating rate
≤15 ℃ / Min
Thermocouple model
Type K
Heating section length
400-440mm
Length of constant temperature section
150mm
Surrounding surface temperature
≤45 ℃
Cover protection system
When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of
the user.
