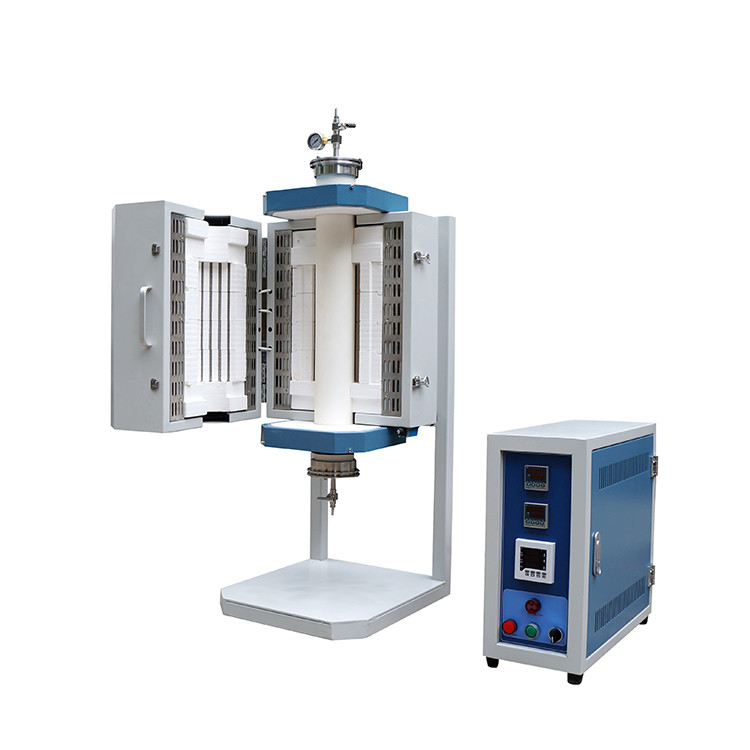

1200 Degree Laboratory Tube Furnace vertical 6KW 220V power
Model | ZKGL-100-12 | Power | 6KW |
---|---|---|---|
Voltage | 220V | Control Precision | +/- 1 ℃ |
Rated Temperature | 1200 ℃ | Dimensions | O.D100*1000 Length 300mm |
High Light | 1200 degree vertical tube furnace,Laboratory Tube Furnace,atmosphere muffle furnace |
-
1200 degree vertical tube furnace
These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems. Vertical or horizontal operation freely adjustable, working height freely adjustable, Operation also possible separate from stand if safety guidelines are observed; Control system integrated in furnace base; Defined application within the constraints of the operating instructions
Main Features
1. Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable
2. Vertical or horizontal operation freely adjustable; working height freely adjustable,
3. Operation also possible separate from stand if safety guidelines are observed4. Control system integrated in furnace base
5. Defined application within the constraints of the operating instructions
6. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
7. The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples
8. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
9. Using intelligent Yudian PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
10. When the instrument program is set, just press the run button and the next work will be completed automatically
11. It can be installed with a gas mass flowmeter, digital precise control of the gas.
