Celsius Laboratory Muffle Furnace 1500 Degree CE ISO Certificate

  • Celsius Laboratory Muffle Furnace 1500 Degree CE ISO Certificate
  • Celsius Laboratory Muffle Furnace 1500 Degree CE ISO Certificate
  • Celsius Laboratory Muffle Furnace 1500 Degree CE ISO Certificate
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK- KF200
Minimum Order Quantity 1 Set
Price 4500
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 2.5KW Furnace Size (mm) 200X150X150（DXWXH）
High Light

1500 Degree Muffle Furnace

,

High Temperature Muffle Furnace

,

Heat Treatment Muffle Furnace
Leave a Message
Product Description

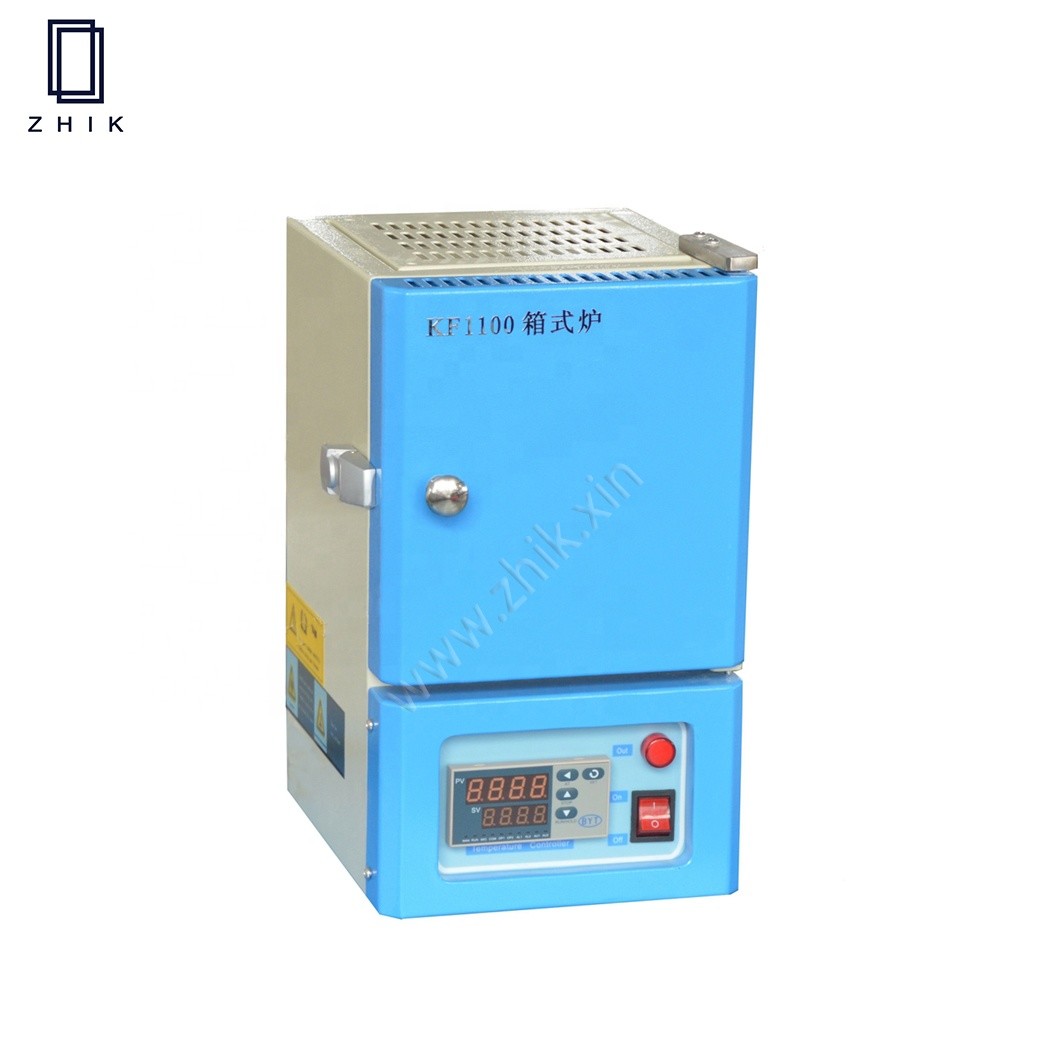

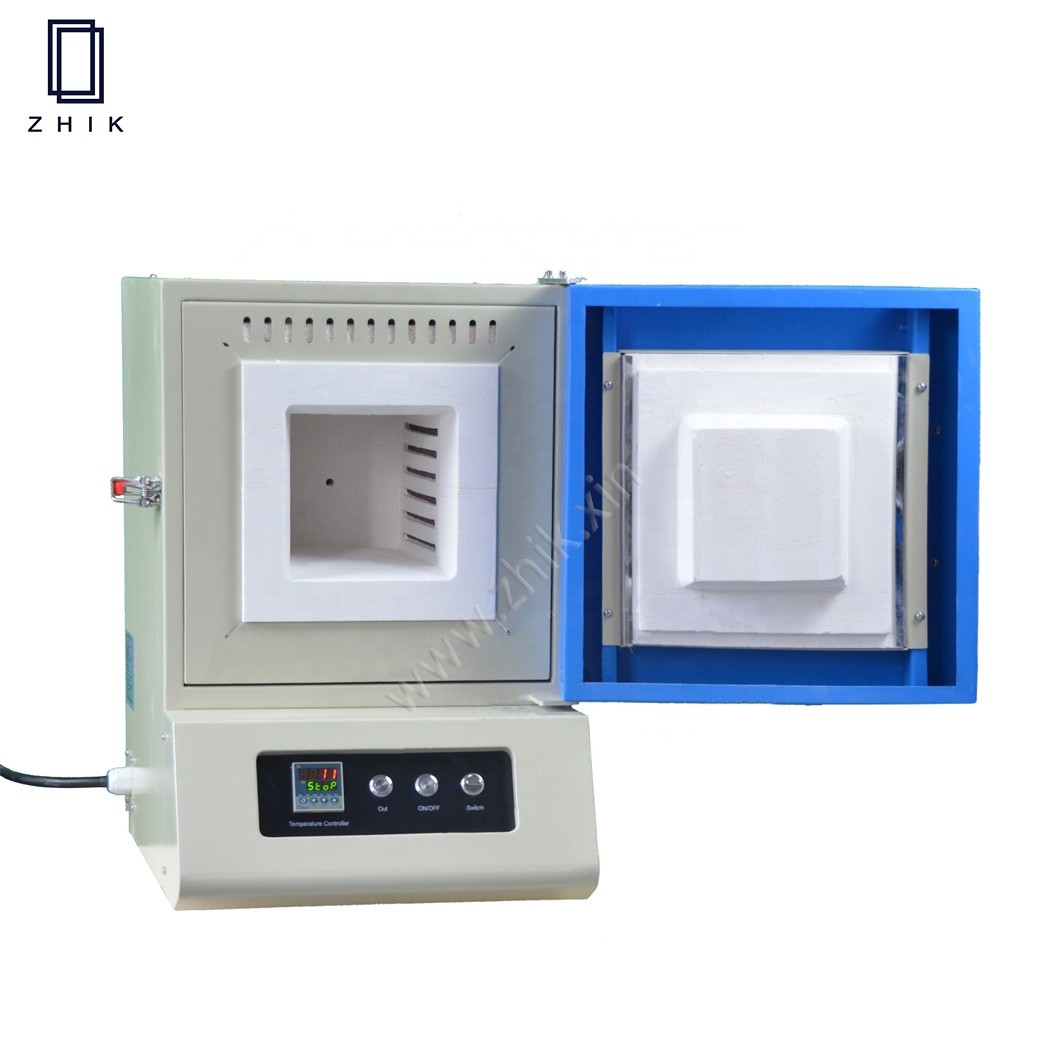

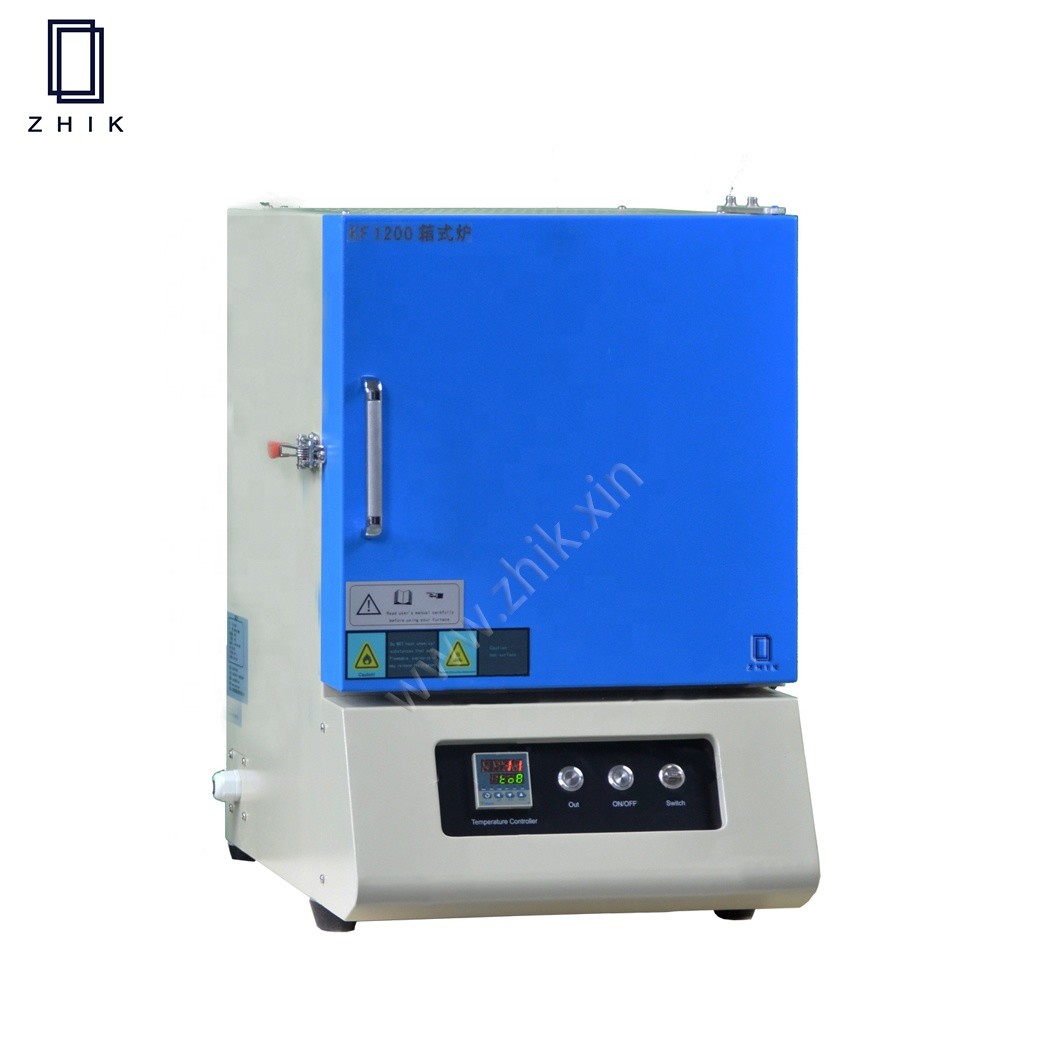

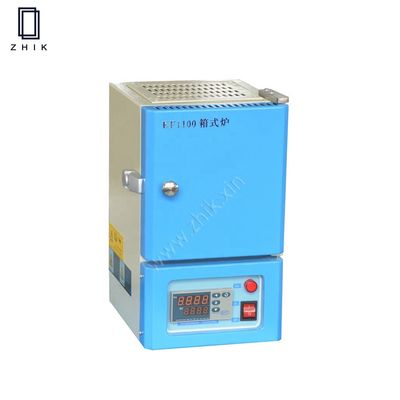

laboratory 1500 Degree Celsius Muffle Furnace
Product Description



Celsius Laboratory Muffle Furnace 1500 Degree CE ISO Certificate 0

Features
1. Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets
can be ignited to burn off gas.
2. Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon
gasket.
3. Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use.
4. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5. Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum
or inert gas environment.)
6. Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
7. Built-in computer interface.(optional)
8 . Long life thermocouple.
9. Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when
the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Technical Parameter
model
ZK-KF1200
power
2.5KW
Furnace size (mm)
200X150X150(DXWXH)
Dimensions
450X550X650 (DXWXH)
voltage
220V
way to control
30-step program temperature control
1. The temperature control of the 30-segment program can only be adjusted by PID.
2. With over-temperature protection and disconnection protection. The overheating circuit of the electric furnace is automatically cut off when over-temperature or off-couple. ON, the ON light on the panel is off, the OFF light is on, and there is limited protection for the electric furnace).
3. With 485 communication interface (standard configuration when software is selected) 4. With power-off protection function, that is, when the furnace is started after power-off, the program will not start from the starting temperature, but will start to rise from the furnace temperature when the power is turned off.
5. The instrument has the function of temperature self-tuning
Temperature control mode
Smart PID
Over temperature protection
Have
Overcurrent protection
Have
Broken protection and display
Have
Furnace material
1. High-purity high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.
2. Formed using Japanese technology.
3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the thermal field is simulated by the thermal software
control precision
+/- 1 ℃
Maximum temperature
1200 ℃
Rated temperature
1100 ℃
Thermocouple model
Type K
SCR
Bidirectional thyristor
surface temperature
≤45℃
warranty period
One year warranty, lifetime technical support
Special Note:
1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not covered by the warranty.
2. Damage caused by the use of corrosive and acid gases is not covered by the
warranty.
Precautions
1. For safety, please put the stove in a ventilated place.
2. In order to increase the service life of the furnace, we recommend that the heating rate should not exceed 10℃/min. The cooling rate does not exceed 5°C/min.
3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gas
4. It is forbidden to put the materials directly on the bottom brick of the furnace, please put the materials in the special crucible.
5. When heating, the materials and crucible should not touch the heating element and thermocouple
6. When not used for a long time, please use the oven again.
