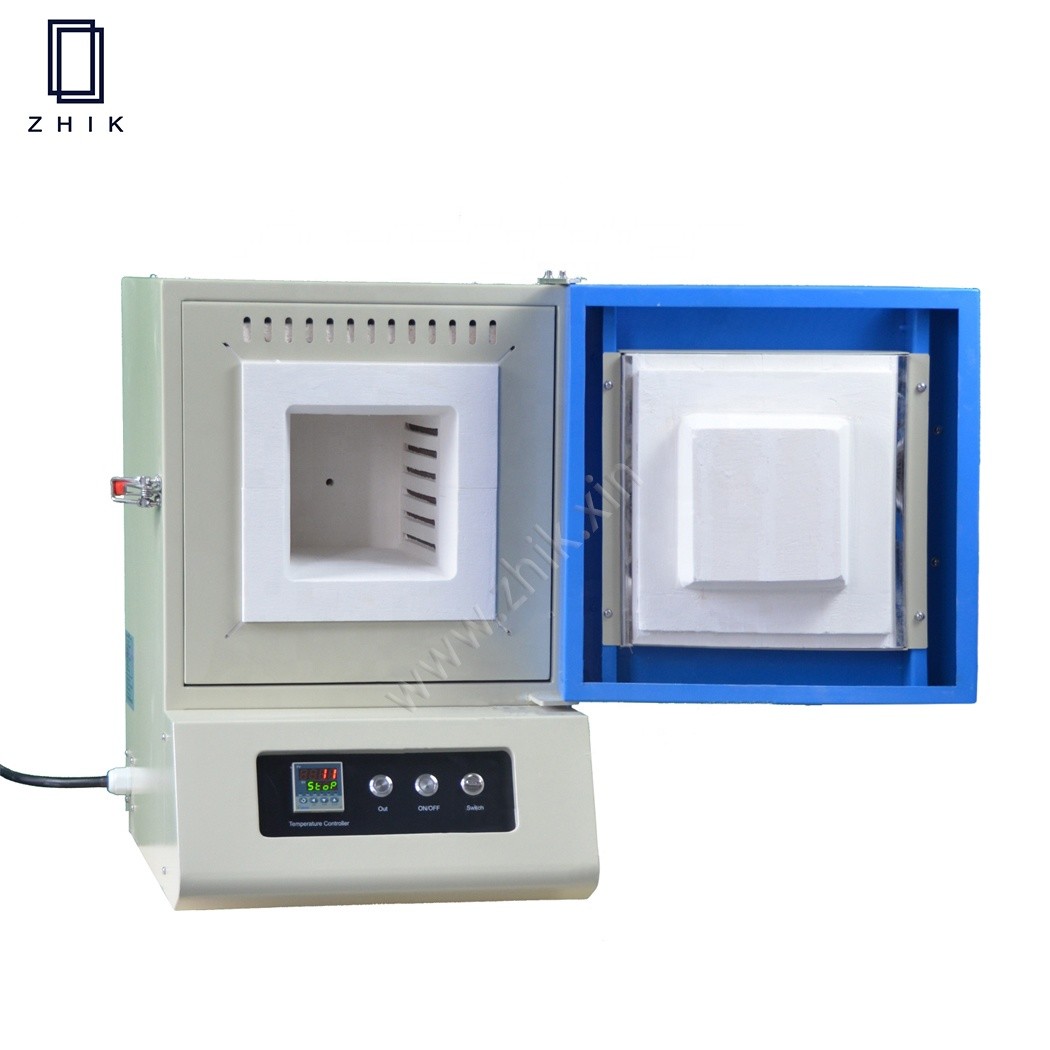

Atmosphere Laboratory Muffle Furnace 1400 degrees 3KW power

  • Atmosphere Laboratory Muffle Furnace 1400 degrees 3KW power
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-KF1400
Minimum Order Quantity 1 Piece
Price USD2800-3300/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-KF1400 Power 3KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1400 ℃ Dimensions 550X500X900mm (DXWXH)
High Light

1400 Degree Muffle Furnace

,

atmosphere muffle furnace

,

Laboratory Muffle Furnace
Leave a Message
Product Description

  • 1400c atmosphere muffle furnace

Title goes here.

Features
The box furnace adopts double-layer shell structure, and the furnace adopts alumina polycrystalline fiber material. The double-layer furnace shell room is equipped with an air cooling system, which can quickly raise and lower the temperature. The power regulator is used to control the current and limit the current in the whole process. The furnace is equipped with a travel switch to open the door and cut off power, an ammeter, a voltmeter, etc.

model
ZK-KF1400
power
3KW
Furnace size (mm)
160X150X150mm
Dimensions
550X500X900mm
voltage
220V
way to control
30-step program temperature control
1. The temperature control of the 30-segment program can only be adjusted by PID.
2. With over-temperature protection and disconnection protection. The overheating circuit of the electric furnace is automatically cut off when over-temperature or off-couple. ON, the ON light on the panel is off, the OFF light is on, and there is limited protection for the electric furnace).
3. With 485 communication interface (standard configuration when software is selected) 4. With power-off protection function, that is, when the furnace is started after power-off, the program will not start from the starting temperature, but will start to rise from the furnace temperature when the power is turned off.
5. The instrument has the function of temperature self-tuning
Temperature control mode
Smart PID
Over temperature protection
Have
Overcurrent protection
Have
Broken protection and display
Have
Furnace material
1. High-purity high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.
2. Formed using Japanese technology.
3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the thermal field is simulated by the thermal software
control precision
+/- 1 ℃
Maximum temperature
1400 ℃
Rated temperature
1350 ℃
Thermocouple model
Type S
SCR
Bidirectional thyristor
surface temperature
≤35℃
warranty period
One year warranty, lifetime technical support
Special Note:
1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not covered by the warranty.
2. Damage caused by the use of corrosive and acid gases is not covered by the
warranty.
Precautions
1. For safety, please put the stove in a ventilated place.
2. In order to increase the service life of the furnace, we recommend that the heating rate should not exceed 10℃/min. The cooling rate does not exceed 5°C/min.
3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gas
4. It is forbidden to put the materials directly on the bottom brick of the furnace, please put the materials in the special crucible.
5. When heating, the materials and crucible should not touch the heating element and thermocouple
6. When not used for a long time, please use the oven again.
