Features
1. Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets
can be ignited to burn off gas.
2. Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon
gasket.
3. Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use.
4. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5. Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum
or inert gas environment.)
6. Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
7. Built-in computer interface.(optional)
8 . Long life thermocouple.
9. Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when
the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
All Products
-
Battery Cell Making Machine
-
Battery Welding Machine
-
Battery Coating Machine
-
Battery Mixing Machine
-
Lithium Battery Raw Material
-
Lithium Ion Battery Testing Equipment
-
Laboratory Ball Mill Machine
-
Battery Rolling Machine
-
Glove Box For Lithium Battery
-
Battery Pack Production Machine
-
Lithium Battery Production Line
-
Laboratory Muffle Furnace
-
Laboratory Tube Furnace
-
Customer oneGood quality, fast ship, highly recommend
-
Customer TWOThe texture is very good. No problem with current use, very good. The operation is very simple and cost-effective
Contact Person :
Eilene
Phone Number :
+86 15382821093
WhatsApp :
+8615382821093

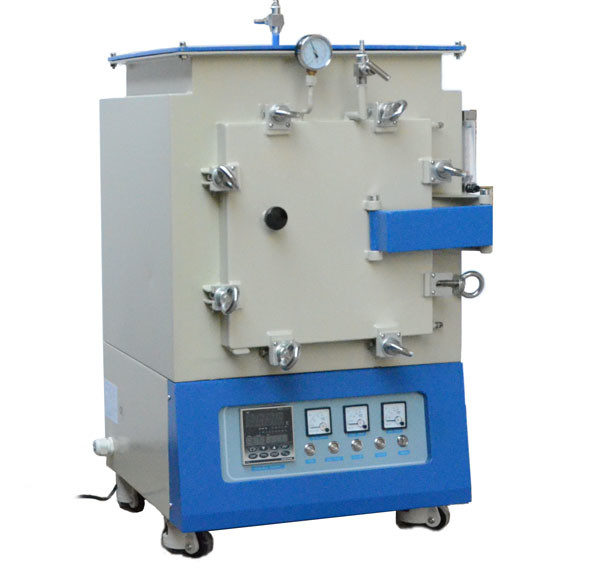

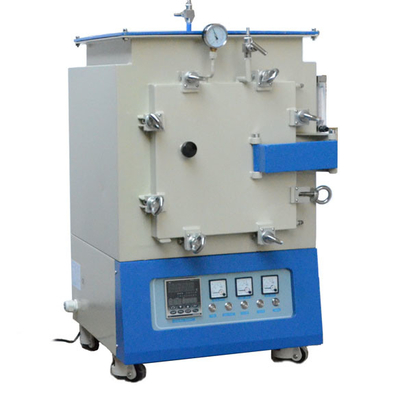

High Temperature Laboratory Muffle Furnace 1800 Degree 1700 Degree
Product Details
Model | ZK-GF1200 | Power | 4KW |
---|---|---|---|
Voltage | 380V | Control Precision | +/- 1 ℃ |
Rated Temperature | 1100 ℃ | Dimensions | 564X615X905mm (DXWXH) |
High Light | 1800 Degree Muffle Furnace,1700 Degree Muffle Furnace,Muffle Furnace for lithium battery |
Product Description
-
Lab High Temperature 1800C 1700C 1600C 1400C 1200C Atmosphere Gas Muffle Box Furnace With Optional Sizes
