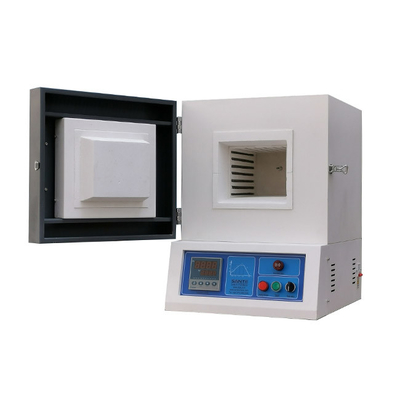

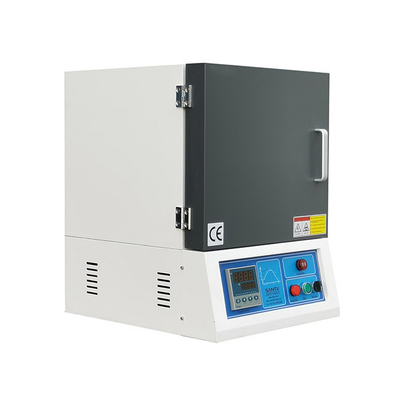

Programmable Laboratory Muffle Furnace 1200 Degree 380V Voltage

  • Programmable Laboratory Muffle Furnace 1200 Degree 380V Voltage
  • Programmable Laboratory Muffle Furnace 1200 Degree 380V Voltage
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZKM-3-12
Minimum Order Quantity 1 Piece
Price USD550-1500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZKM-3-12 Power 2.5KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1200 ℃ Dimensions 150x150x150mm
High Light

Box muffle furnace

,

Programmable Muffle Furnace

,

Laboratory High Temperatur Muffle Furnace
Leave a Message
Product Description

  • Programmable laboratory 1200 degree muffle furnace

ZKM 1200 series muffle furnace features high quality spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Laboratory furnaces are ideal for heat treating, reacting studies, sintering processes, and ceramic firing. Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 45 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.



Furnace operation is controlled by Shimaden (Japan) 32-segment digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money.



Mean Features

1. Dual wall housing makesure the body cool during heavy use.
2. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
3. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
4. Built-in computer interface.
5. Long life type N thermocouple.
6. CE certified

Technical Parameters
Model ZKM-3-12 ZKM-8-12 ZKM-18-12 ZKM-30-12
Chamber Size mm(W*D*H) 150x150x150 200x300x120 250x300x250 300x500x200
Power supply 220V/2.5KW 220V/3KW 220V/5KW 380V/7.5KW
Type Benchtop
Front-loading
Usage The product is suitable for elemental analysis, measurement and small size steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units,can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
Furnace structure The furnace is made of carbon steel with powder coating on surface, integrate furnace body and heating system and controller system in one
Max. temperature 1200°C (2192°F)
Continuous Working temperature 1100°C (2012°F)
Heating Rate Fast heat-up time due to the low thermal mass construction
Suggest 5~15℃/min for longer life using of furnace
Heating Element Top brand iron-aluminum alloy resistance coil wire (HRE)
The wire elements are coiled and embedded in three sides of the wall (Elements located in ceiling, left and right sides)
Chamber material 1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties
2. High quality 1300 degree fiber alumina as refractory lining, pure white color
3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes
4. Embedded heating elements on the round chamber which give an ideal temperature uniformity
Temp. Uniformity ±5°C
Thermocouple

N type

Temp. Range: (0 to 1260) °C [32 to 2300] °F
Temperature Controller 1. Shimaden SRS13A(Japan) with 4 programs and 32 segments
2.Simultaneous LED display of actual temperature VS set point
3.PID automatic control and auto-tune function
4.+/- 1 ºC temperature accuracy
Control system integrated in furnace base, defined application within the constraints of the operating instructions
Electronic component SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell 1. High quality cold-rolled steel sheets CNC processing
2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes
3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions 1. Overheating & Broken thermocouple protection
2. Leakage circuit breaker
3. Automatic power off when furnace door opens (optional function)
4. Over-temperature protection and alarm allow for operation without attendant(s)
5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Supply Scope

1. One set of muffle furnace

2. One piece of N-type thermocouple (installed before delivery)

3. Three-meter power line

4. One pair of crucible tongs

5. One pair of high temperature furnace gloves

6. An instruction book

Optional Accessories

1. Quartz Boat

2. paperless recorder
3. exhaust chimney
Certification ISO9001 CE SGS
Warranty One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively
