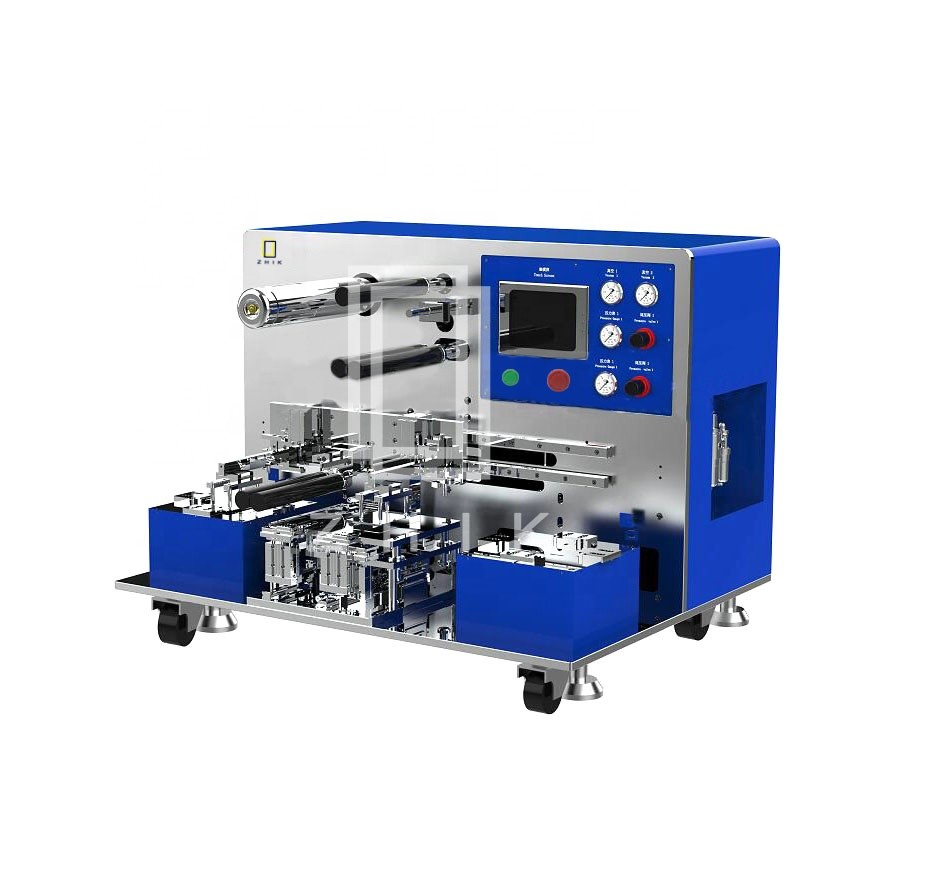

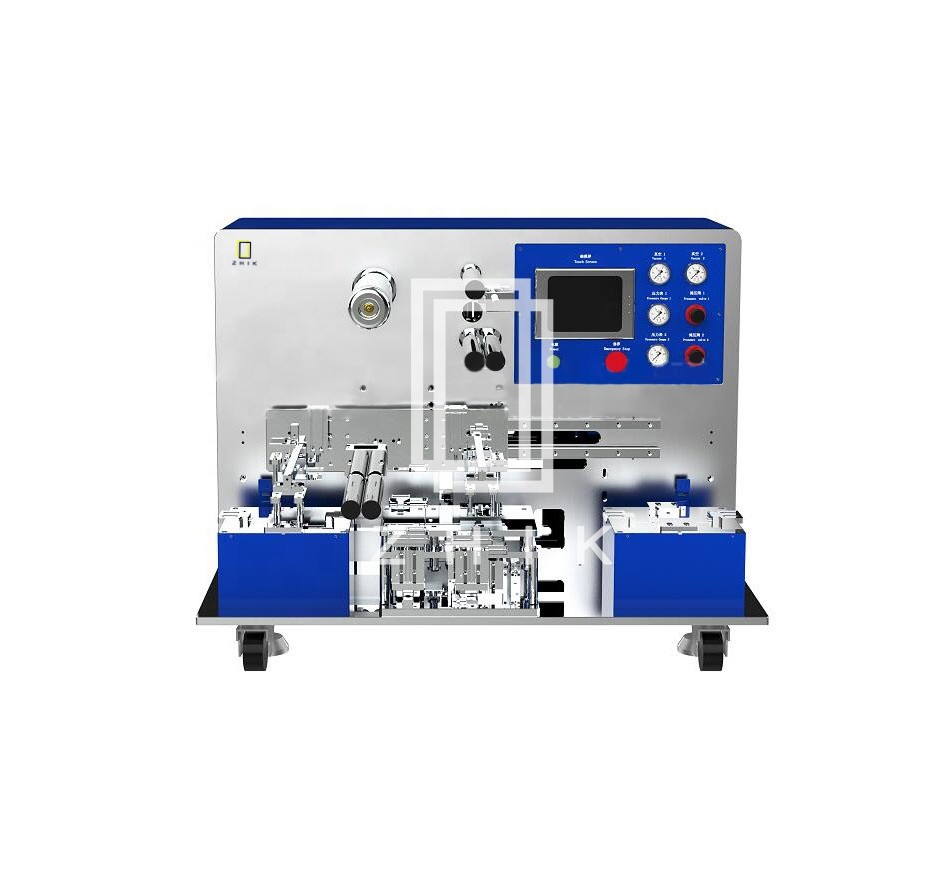

Film Coated Battery Stacking Machine Automatic For Lithium Battery 0.6KW

  • Film Coated Battery Stacking Machine Automatic For Lithium Battery 0.6KW
  • Film Coated Battery Stacking Machine Automatic For Lithium Battery 0.6KW
  • Film Coated Battery Stacking Machine Automatic For Lithium Battery 0.6KW
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-DP200L
Minimum Order Quantity 1 Set
Price 19500
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-DP200L Power 0.6KW
High Light

Battery Stacking Machine

,

Pouch battery assembly machine

,

Lithium battery laboratory automatic stacking machine
Leave a Message
Product Description
Film-Coated Automatic Stacking Machine For Lithium Battery Stacking Process
Product Description

ZK-DP200L automatic laminator is a device that can be applied to the lamination process of lithium ion battery pole pieces. The manual loading, the subsequent pole position correction and the lamination process are completed automatically, which has the characteristics of high lamination efficiency and high lamination accuracy. The design of the equipment can stack 200 * 200mm batteries, and different sizes can be achieved by adjusting the jig. It is very suitable for the development and sample production of laminated lithium-ion batteries. The equipment adopts single cantilever structure design, automatic constant tension control and automatic correction control

Film Coated Battery Stacking Machine Automatic For Lithium Battery 0.6KW 0

Technical Parameter
1
power supply
220V / 50Hz; 220V mains power can be used directly
2
power
0.6KW
3
Compressed air
≥0.6MPa
4
Equipment weight
300KG
5
Equipment size
length x width x height: 1100mmx790mmx755mm
6
Diameter of diaphragm roll
＜250mm
Stackable Size
* Min 62 mm L x 46 mm W
* Max 200mm L x 200 mm W
Stackable Layers
Up to 500 layers
Stacking Speed
Up to 1 layer per 2 seconds
7
Max. Electrode Thickness
Piled up thickness < 30 mm
8
Aligning Accuracy
±0.3 mm for stacked electrodes
