Cylindrical Cell Grooving Machine For 18650 26500 Battery Cases
| Place of Origin | China |
|---|---|
| Brand Name | ZHIK |
| Certification | CE IOS |
| Model Number | ZK-G50I |
| Minimum Order Quantity | 1 Piece |
| Price | USD2100-3000/Piece |
| Packaging Details | Wooden packing |
| Delivery Time | 14 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15set/month |
Product Details
| Model | ZK-G50I | Grooving Depth | 1.2~2.0mm |
|---|---|---|---|
| Accuracy | ±0.1mm | Grooving Width | 1.1-1.5mm |
| Air Pressure | 0.4-0.7MPa | Grooving Battery Case Size | CR123,18650,26650,32650 |
| High Light | Semi auto Grooving Machine,Cylindrical Cell Grooving Machine,18650 Cylindrical Battery Grooving Machine |
||
Product Description

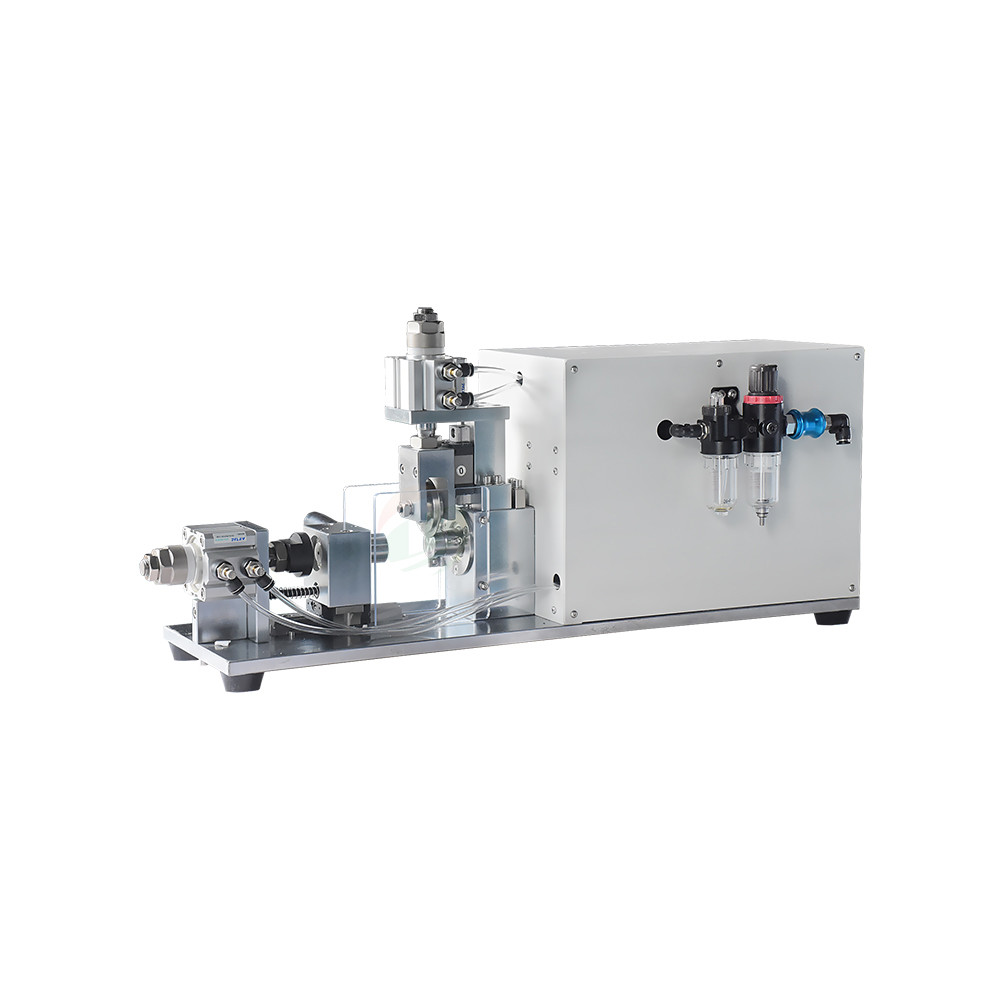

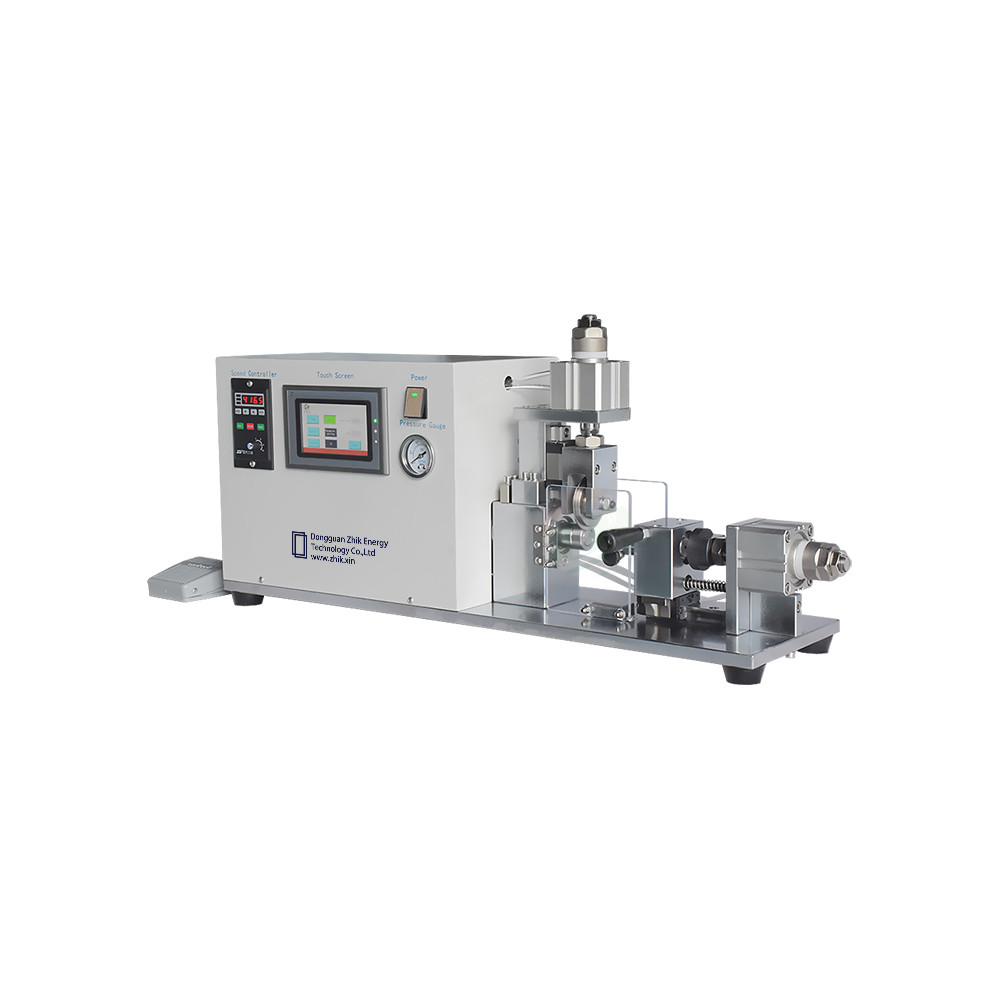

Cylindrical Cell Grooving Machine
It is suitable for the uniform automatic rolling groove of the cylindrical steel shell (or capacitor aluminum shell) equipped with battery cell core.
D.Main feature:
*Using PLC touch screen control, each parameter setting is convenient and intuitive, easy to operate, easy to maintain.
*The metal waterproof button is used to resist moisture and electrolyte corrosion.
*The speed controller uses digital display to accurately adjust and display the current speed.
*Adjustable roll groove size, high precision and stable size.
*It can process various kinds of cylindrical batteries.
*The machine is small in size, exquisite and beautiful in appearance, and easy to operate.
E . Technical parameter
| Model | ZK-G50I |
| Configure power | 220V/50Hz |
| Power | 140W |
| Rolling groove depth | 1.2 ~ 2.0mm (adjustable) |
| Rolling groove width | 1.1 ~ 1.5mm (according to the thickness of knife) |
| Precision | ±0.1mm |
| Knife life | >1 million times |
| Production capacity | Semi-auto 400 EA/H |
| Compressed air | 0.5MPa~0.7MPa |
| Product size | L740X 250X 350mm |
| Weight | 37kg |
| Suitable battery model |
1.Suitable for various steel shell cylindrical battery roll grooves such as 18650 ,26650.21700.....; 2.Suitable for rolling groove of aluminum shell capacitor within Φ30 |
