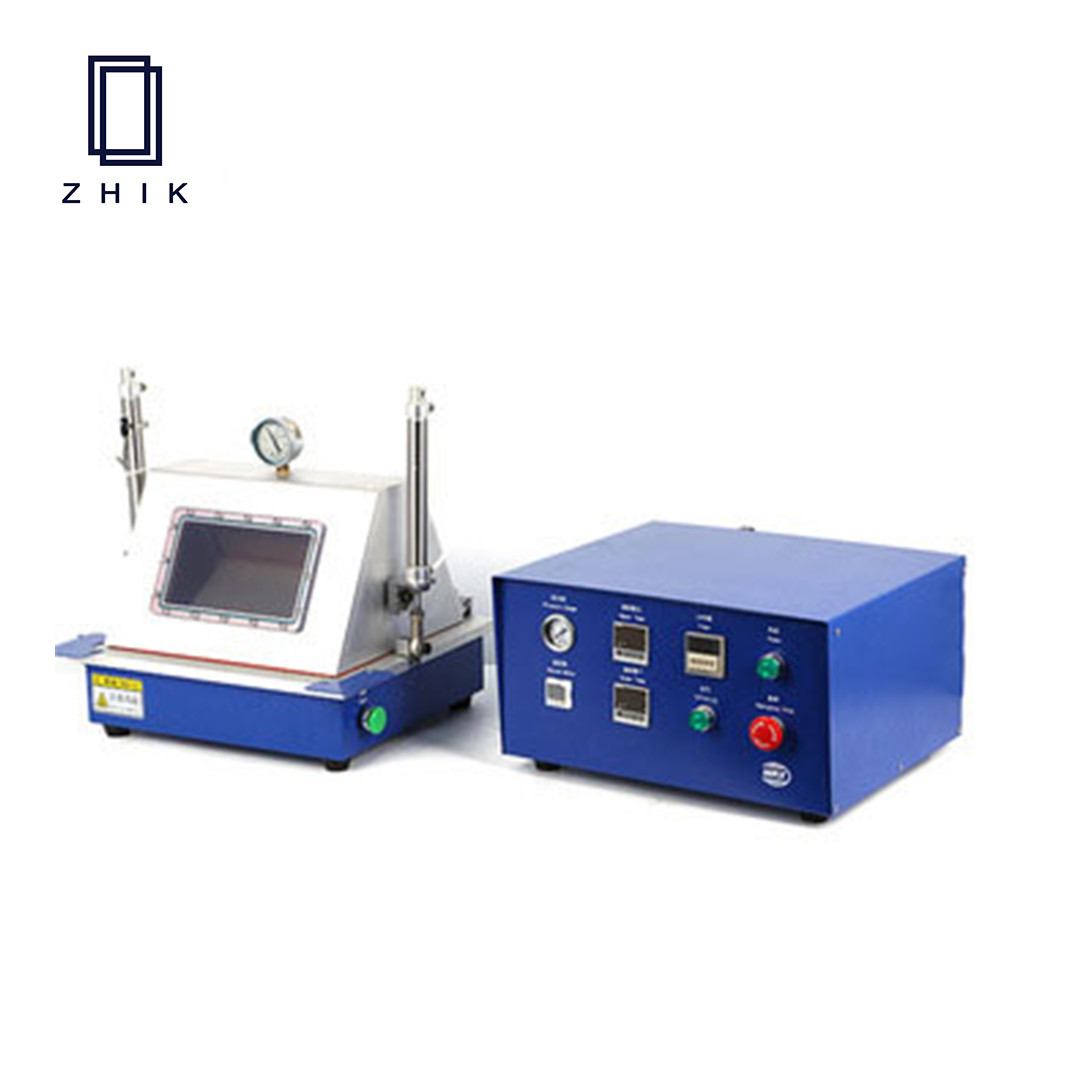

lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power

  • lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power
  • lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZH-VS200
Minimum Order Quantity 1 Piece
Price USD3000-3500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZH-VS200 Power 0.6KW
Edge Width Standard 6mm Sealing Length Max.190mm
Battery Size Max. L200mm * W190mm * H12mm Weight 50KG
High Light

Lithium battery vacuum sealing machine

,

bag battery vacuum heat sealing machine

,

lithium battery pre sealing machine
Leave a Message
Product Description

  •

  • lab compact vacuum heat pre sealing machine Sealer for preparing battery pouch cell al laminated case after electrolyte

ZH-VS200 vacuum pre-sealing machine can be applied to the vacuum pre-sealing process of flexible packaging lithium batteries The machine has a compact design, can be placed in a glove box and can be used for vacuuming and heating sealing functions. The vacuum of the working chamber of the equipment is maintained well, the sealing effect is high, and the flatness of the finished battery is good



lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power 0



Suitable for pre-sealing process of small and medium-sized soft pack lithium ion batteries; The vacuum is kept good to ensure the moisture content of the finished battery; Good temperature uniformity, high package consistency, can be long
lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power 1



Split design, the main body can be placed in an ordinary glove box and the control box is external; When using in a glove box, it is recommended to use inert gas to prevent contamination of the glove box
lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power 2

step 1

Put the sealed battery at the top and front end into the glove box
lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power 3

Step 2

Through the right opening, use the instrument to inject electrolyte into the battery.
lab vacuum Battery Cell Making Machine heat pre sealing 0.6KW power 4

Step 3

Put the battery into the ZK-VS200 vacuum sealing machine for sealing operation

1
Power supply voltage
single-phase 220VAC ± 10% (customizable 110VAC), frequency 50Hz / 60Hz,
2
power
0.6KW
3
Air source
0.5 ~ 0.8MPa compressed air or inert gas
4
Head temperature
up to 250 ℃ for upper and lower heads, 200 ℃ for upper heads and 160 ° C for lower heads (recommended 180 ° for upper and lower
heads)
5
emperature control accuracy
± 2 ℃
6
Edge width standard
6mm
7
Sealing length
Max.190mm
8
Sealing pressure adjusted
by air pressure
9
Battery size
Max. L200mm * W190mm * H12mm
10
Heat sealing time
0 ~ 99s adjustable,recommended setting 3-4s
11
Adjustable vacuum
up to -90Kpa
12
Air consumption
about 0.2L compressed gas / per seal
13
Dimensions
Working Department: 470mm * 485mm * 435mm; Control box: 420mm * 325mm * 225mm
14
equipment weight
50KG
