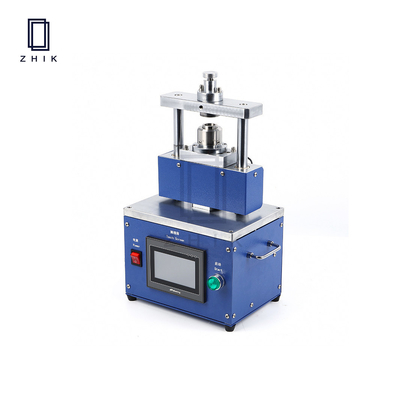

Sealing Crimping Battery Cell Making Machine For Cr2032 Cr2025 Cr2016 Li Ion Battery

  • Sealing Crimping Battery Cell Making Machine For Cr2032 Cr2025 Cr2016 Li Ion Battery
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CC20E
Minimum Order Quantity 1 Piece
Price USD1800-2500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-CC20E Working Voltage AC100V/220V 50/60Hz
Power 100W Structure Heavy Duty Steel Platform
Weight 46KG Equipment Size L250mm XW185mm X H450mm
High Light

coin cell electric crimping machine

,

Battery Crimping Machine

,

2032 coin cell crimping machine
Leave a Message
Product Description

  • Cr2032 Cr2025 Cr2016 Li-ion Battery Electric Button Coin Cell Sealing Crimping Disassembling Machine 2032 Crimper

  • coin cell electric crimping machine

  •

ZK-CC20E It is a compact button battery packaging machine with adjustable packaging
pressure, which can be used to package CR20
series of button batteries (CR2016, 2032 and 2025).
This packaging machine uses a motor that can run in an Ar atmosphere. There is no hydraulicoil in the packaging machine, so compared to hydraulic packaging machines, this electric packaging machine is more suitable for operation in a glove box. The instrument is equipped with a PLC touch screen for easy adjustment parameter.
The sealing pressure can be adjusted according to requirements.




Power
voltage single-phase 110V~220V AC±10%; frequency 50Hz/60Hz; power 100W
Die Set & Compatibility
Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request).
Pressure
1. The pressure applied to seal the cell case is pre-set to a constant pressure at about 800 kg before shipping.
2. Pressure adjustment knob at the top can be used to adjust the pressure applied to the negative cap of the cell to prevent case
deformation.
Structure
Heavy Duty Steel Platform
Product Dimensions
L250mm XW185mm X H450mm
Compliance
CE
Warranty
Two years limited warranty with lifetime support
Maintenance Notes & Warnings

1. Electrolytes are highly corrosive materials.The die set must be cleaned with alcohol after each use to avoid corrosion
2. The PTFE die (found at the top die) ejects the cell casing after crimping via spring loaded pressure. Do NOT over tighten the
pressure adjustment knob to avoid damaging this PTFE die.
3.To set the proper pressure on the die, loosen the knob all the way until the spring compression is no longer stressed. Then
start tightening the knob and stop turning it once the spring compression is felt.
4.This will prevent the PTFE die from becoming deformed by being subjected to excessive pressure.
Net Weight
32 kg
Shipping Weight
46 kg
