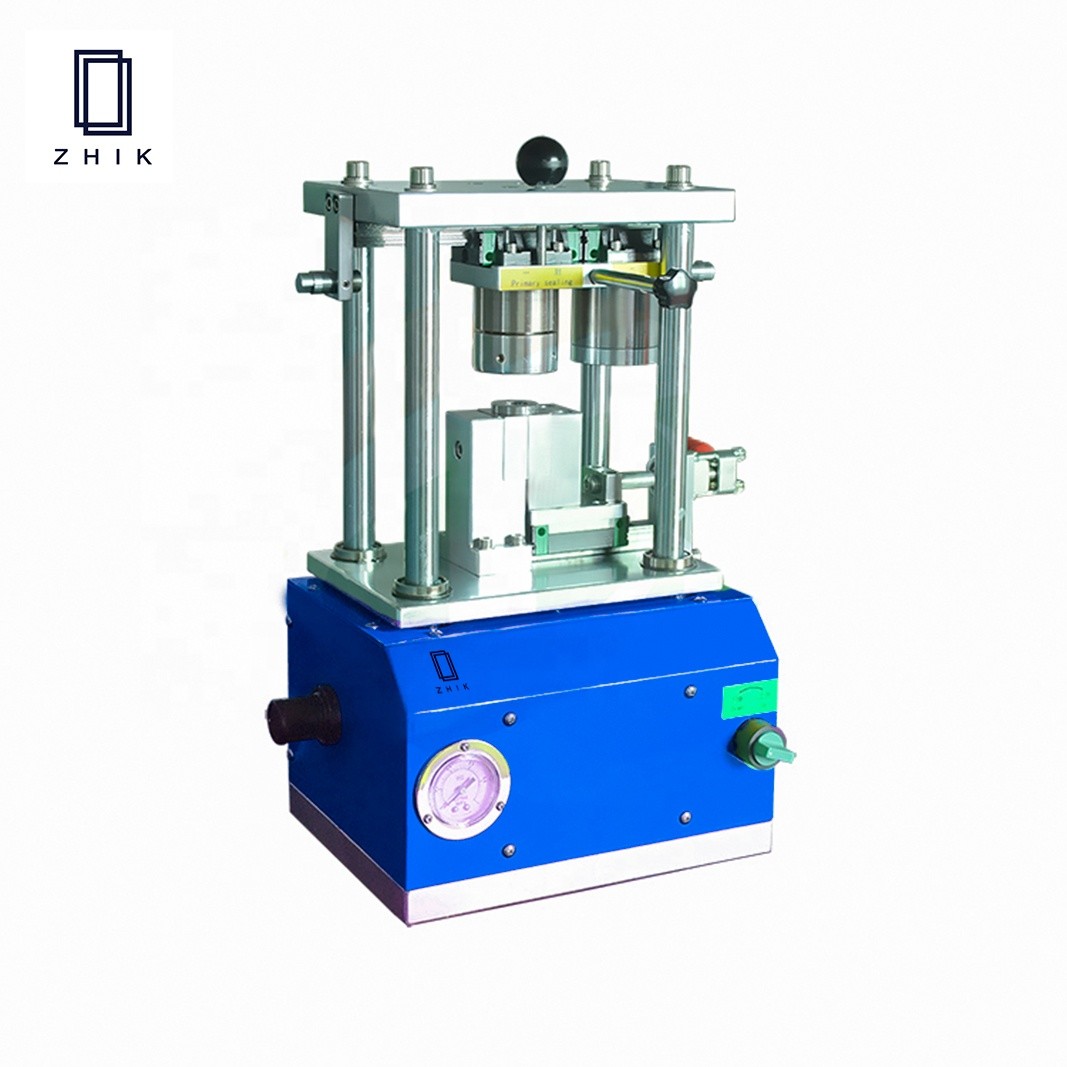

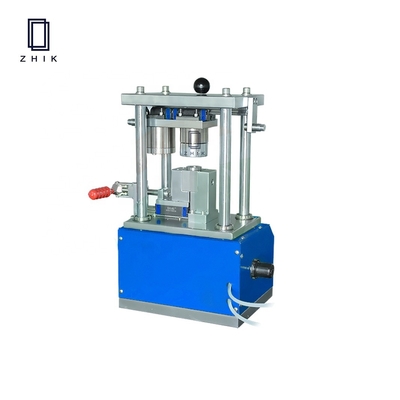

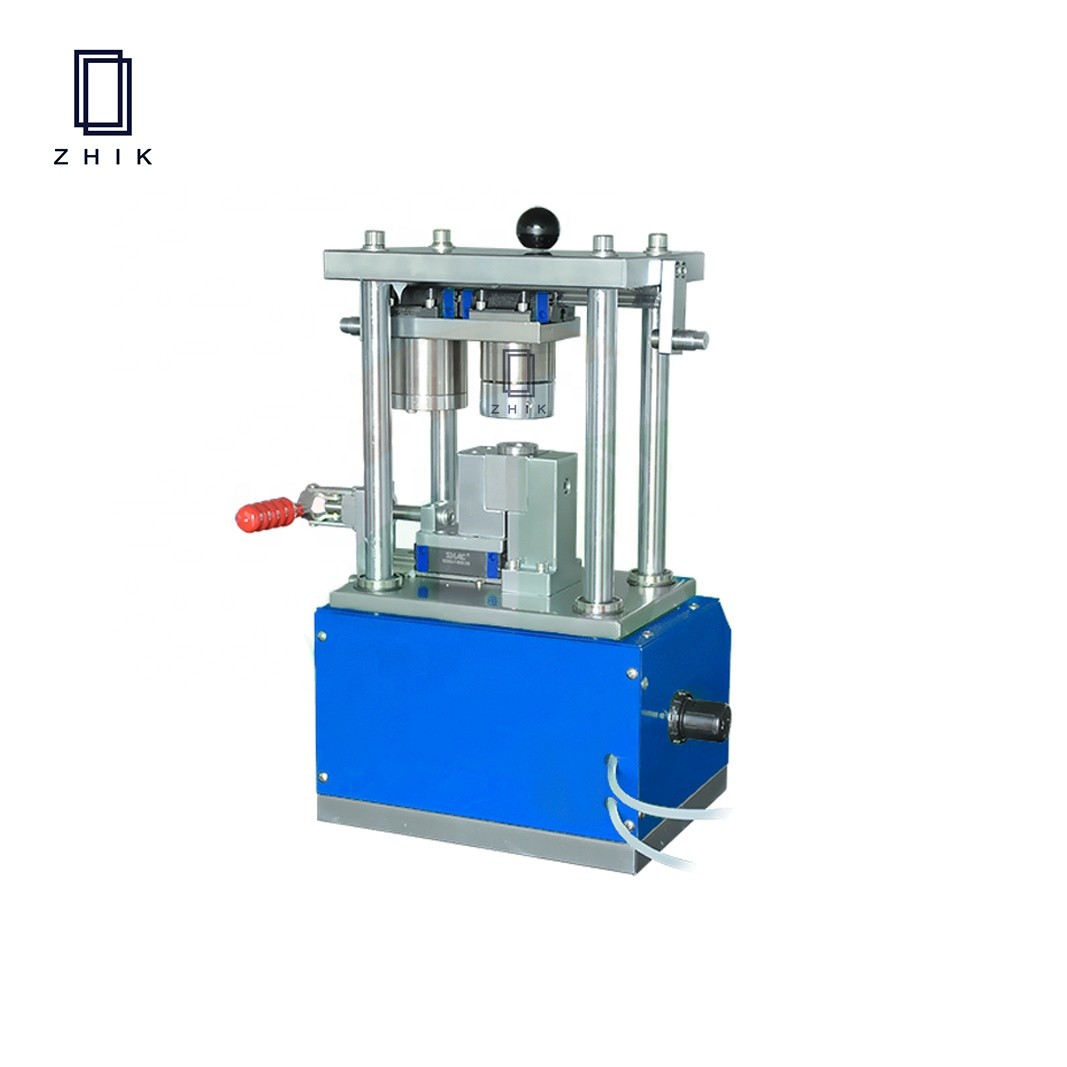

Crimping Battery Cell Making Machine For 18650 26650 32650 Battery Case Sealing

  • Crimping Battery Cell Making Machine For 18650 26650 32650 Battery Case Sealing
  • Crimping Battery Cell Making Machine For 18650 26650 32650 Battery Case Sealing
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CC50P
Minimum Order Quantity 1 Set
Price 4200
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Weight 35Kg Sealing Trip 30 Mm
High Light

18650 Battery Cell Making Machine

,

26650 battery crimping machine

,

32650 battery crimping machine
Leave a Message
Product Description
Lithium ion Cylindrical Cell Crimper Crimping Machine For 18650 26650 32650 Battery Case Sealing
Product Description

1 ZK-CC50P pneumatic sealing machine mainly used for the sample of lab battery materials’ research, which to make cylindrical battery. The research sealing of cylindrical capacitor can also be used in small batch trial production in factory. 2 Included Mould: Standard 18650 Cylindrical battery sealing mould(1 set, 2 sealing). You can also choose other Cylindrical battery sealing mould.



Crimping Battery Cell Making Machine For 18650 26650 32650 Battery Case Sealing 0

Main features:
1 Totally operated by pneumatic. Without any electricity. Very easy to use.
2 Two steps for sealing which make better sealing.
3 Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.
4 Good looking appearance, Simple maintenance, Small size, easy operater and accurate molding.
5 Gas supply by compressed air or Inert gas cylinder. External connection of the compressed gas make sure the balance of the
atmosphere in the glove box.
6 Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.

Technical Parameter
1
Model
ZK-CC50P Cylindrical battery sealing machine
2
Warranty
One Year limited warranty with lifetime support
3
Gas source
0.6 ~ 0.8MPa argon, nitrogen cylinders, or compressed air (compressed air is not recommended in the glove box)
4
Exhaust gas design
specially designed exhaust ports, which can be externally connected through devices such as KF40
5
Gas consumption
480ml for single seal
6
Sealing pressure
manual control valve control, maximum pressure 1 MPA, recommended use pressure 0.7 MPa, accuracy ±0.5%
7
Sealing trip
30 mm
8
Sealing dies
Standard 18650 series package dies, it can be selected or matched with other specifications
9
Dimension
L290mm*W205mm*H330mm
10
Weight
35Kg

11

Structural material
1.With the function of preventing the short circuit of the battery seal.
2.high strength chromium steel, the surface after environmental plating and spray treatment will never rust
