stacking Battery Cell Making Machine Semi Automatic AC100V 220V

  • stacking Battery Cell Making Machine Semi Automatic AC100V 220V
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-DP150
Minimum Order Quantity 1 Piece
Price USD4500-5500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-DP150 Working Voltage AC100V/220V 50/60Hz
Stacking Electrode Size 1. 230mm X 150mm Max. 2. 44mm X 44mm Min. Acceptable Separator Roll Size 220mm O.D Max.
Battery Size 500mm(L) X 600mm(W) X 650mm(H) Weight 60KG
High Light

Stacking Battery Cell Making Machine

,

100V Battery Cell Making Machine

,

220V battery stacking machine
Leave a Message
Product Description

  • Semi-Automatic Layered Stacking Machine For Assembly And Production Of Lithium Battery Pouch-Type Battery Electrodes And

  • Lithium battery stacking machine

ZK-DP150 is a semi-auto electrode stacking machine with advanced features to ensure a stable, repeatable and precise electrode
stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in
between. It is more precise and consistent.

1. Consistent tension controls for separator film delivery
2. "Z" fashion stacking with a separation via a foot-switch
3. Manual slidable fixtures enable accurate positioning and compactness of electrodes
4. Unreeling rotors for separator film feeding adjusting fixture position
5. Can accept various size of electrode
6. Automatic counting & zeroing for the numbers of stack

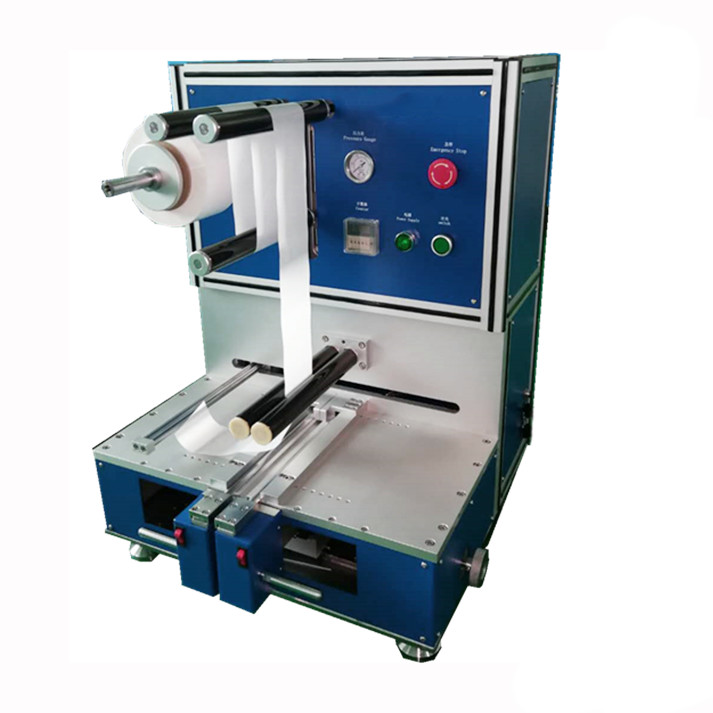

stacking Battery Cell Making Machine Semi Automatic AC100V 220V 0
stacking Battery Cell Making Machine Semi Automatic AC100V 220V 1Equipped with a dedicated battery core fixture, which is convenient for handling and attaching the battery core
1
Working Voltage
AC100V/220V 50/60Hz
2
Stacking Electrode Size
1. 230mm x 150mm Max.
2. 44mm x 44mm Min.
3
Max. Electrode Thickness
Piled up thickness < 9mm
4
Aligning Accuracy
±0.3mm for stacked electrodes
5
Acceptable Separator Roll Size
220mm O.D Max.
6
Slidable Electrode Fixture
Two slidable fixtures ensure a compact, tight electrode stacking

Electrode Tongs
One electrode tongs are included for easy electrode pick-up

Suggested Air Pressure
0.6 - 1.5 MPa

Product Dimensions
500mm(L) x 600mm(W) x 650mm(H)
7
Net Weight
60Kg
