Lab Battery Coating Machine , Automatic Film Coater ISO certificate

  • Lab Battery Coating Machine , Automatic Film Coater ISO certificate
  • Lab Battery Coating Machine , Automatic Film Coater ISO certificate
  • Lab Battery Coating Machine , Automatic Film Coater ISO certificate
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CZ300
Minimum Order Quantity 1 Set
Price 35000
Packaging Details Wooden packing
Delivery Time 20
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Pole Piece Width 300mm Coating Roller Bounce ≤2μm
High Light

Lab Battery Coating Machine

,

ISO Battery Coating Machine

,

Lab Automatic Film Coater
Leave a Message
Product Description
Battery Lab Automatic Film Coating Coater Machine For Lithium Battery Making Machines
Product Description



Automatic Coating Machine
It is suitable for the continuous Coating process of battery positive and negative plates. It is replaced by a three-roller
transfer type. A very uniform thin coating is applied on the surface of the substrate and then automatically dried by the drying
system. The operation of oven drying, and improve the uniformity of squeegee and drying efficiency.

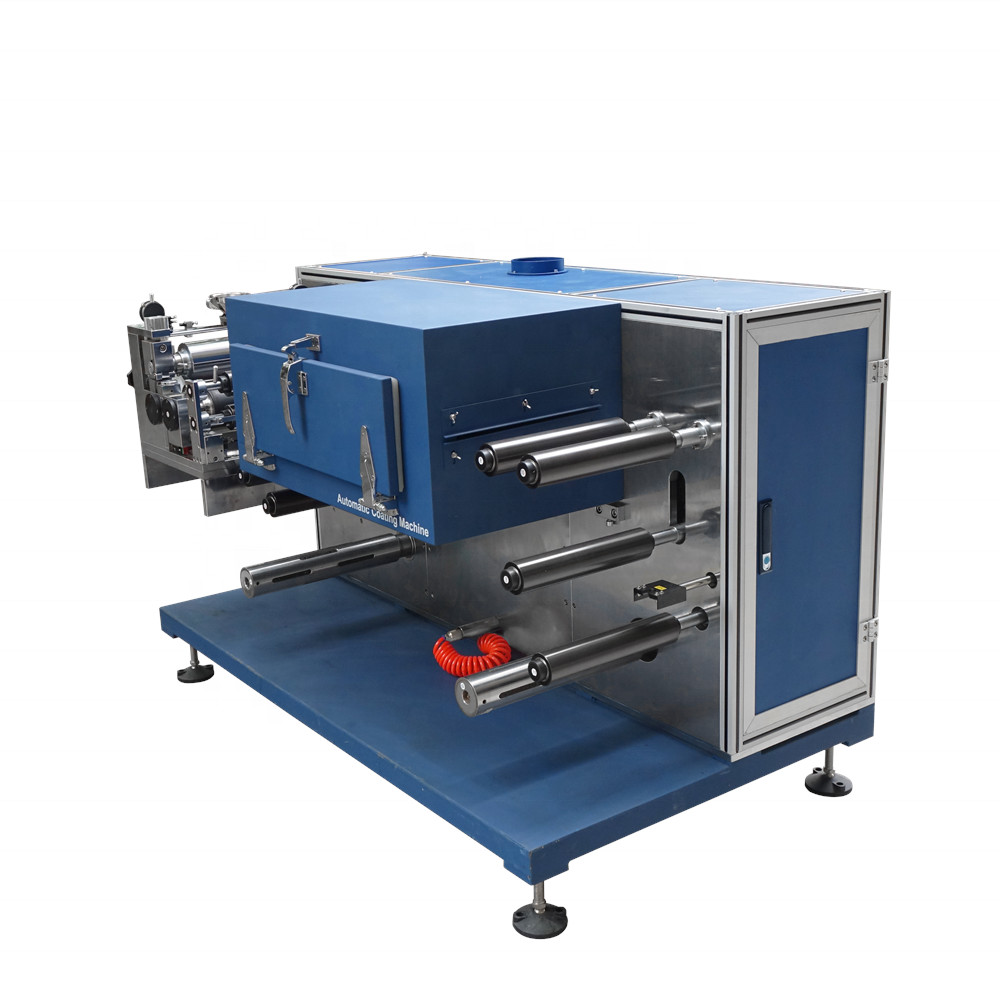

Lab Battery Coating Machine , Automatic Film Coater ISO certificate 0

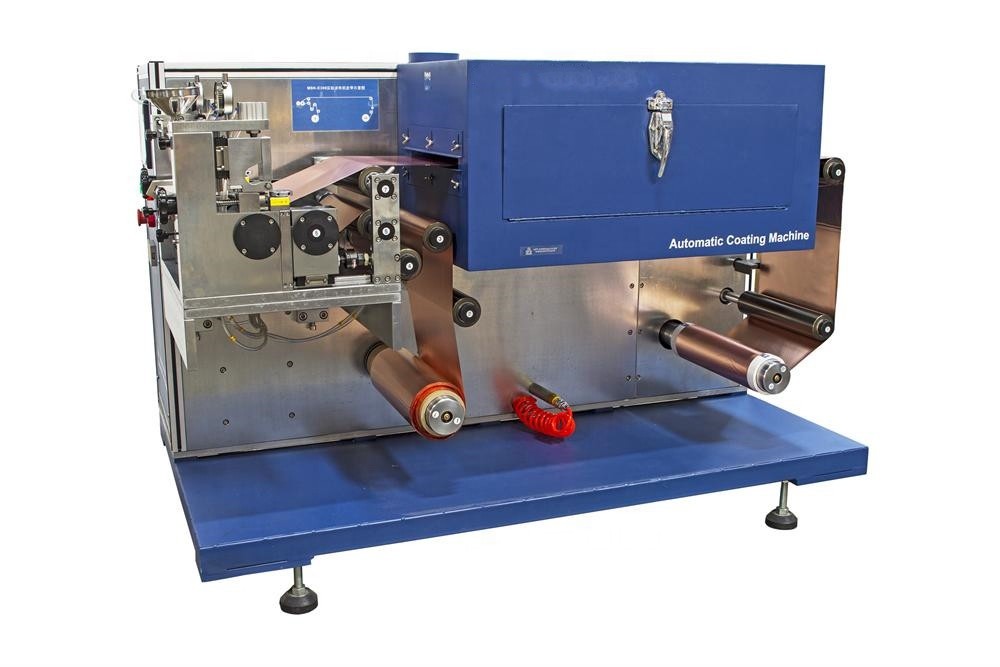

Lab Battery Coating Machine , Automatic Film Coater ISO certificate 1

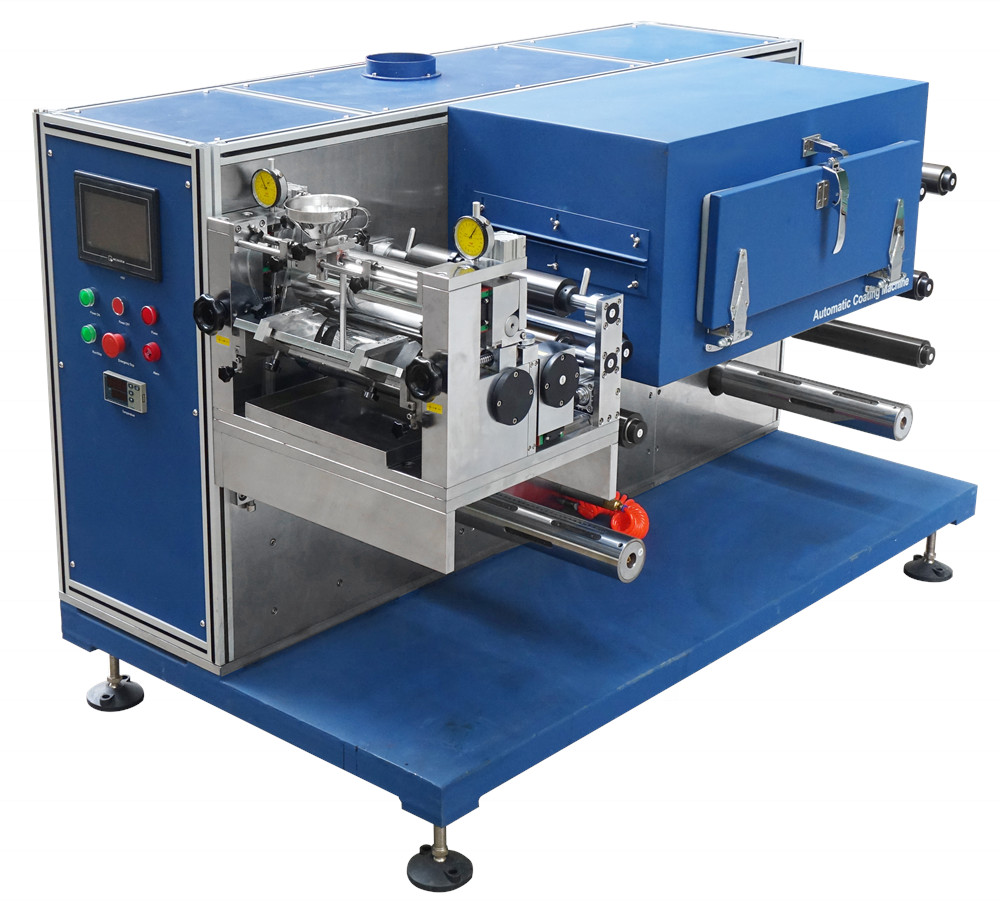

Lab Battery Coating Machine , Automatic Film Coater ISO certificate 2

Slurry Stirring

Can prevent slurry precipitation during the coating process
Lab Battery Coating Machine , Automatic Film Coater ISO certificate 3

Continuous mode

Two available coating modes selectable on the control panel
Lab Battery Coating Machine , Automatic Film Coater ISO certificate 4

Intermittent coating

The length of the coating and break segments can bespecified by the user
Technical Parameter
1
model
ZK-CZ300
2
main feature
Automatic tape feeding, automatic winding, adjustable coating tension
Equipped with a drying system, automatic coating drying
Temperature control adopts PID adjustment system, with high control accuracy and reliable work
Adopt hot air circulation system, which can make the temperature inside the box even and not easy to burn the pole pieces;
With automatic stirring rod, the slurry is more uniform when coating, and the contact part of the slurry is stainless steel
structure
The main drive adopts frequency conversion speed control, wide speed range, constant and reliable speed, constant torque speed
control system, stable performance and high coating accuracy
Continuous uninterrupted coating, tidy winding
Exquisite appearance, the sheet metal adopts three-dimensional geometric design, simple and beautiful
3
Painting method
single-sided continuous
4
Applicable baseband
copper foil, aluminum foil, etc
5
Pole piece width
≤300mm
6
Coating speed
100-600mm / min (adjustable)
7
Coating accuracy
≤ ± 0.003mm
8
Coating roller bounce
≤2μm
9
Coating roller diameter
Φ100mm
10
Unwinding diameter (Max)
Φ250mm
11
Rewinding diameter (Max)
Φ250mm
12
Tension control
5-50N (adjustable)
13
Scraper positioning accuracy
dial indicator display, accuracy ± 1μm
14
Drying temperature (Max)
adjustable from room temperature to 150 ℃ with hot air circulation
15
Drying method
upper and lower air blowing (resistance wire heating)
16
Heating area
Area 1, 1.2 meters
17
Compressed air
pressure 0.5Mpa ~ 0.7Mpa
18
flow rate
0.04M3 / min
19
Power supply
AC220V / 50Hz
20
Maximum power
about 5kW
21
Dimensions
length × width × height = 1800 × 810 × 1300
