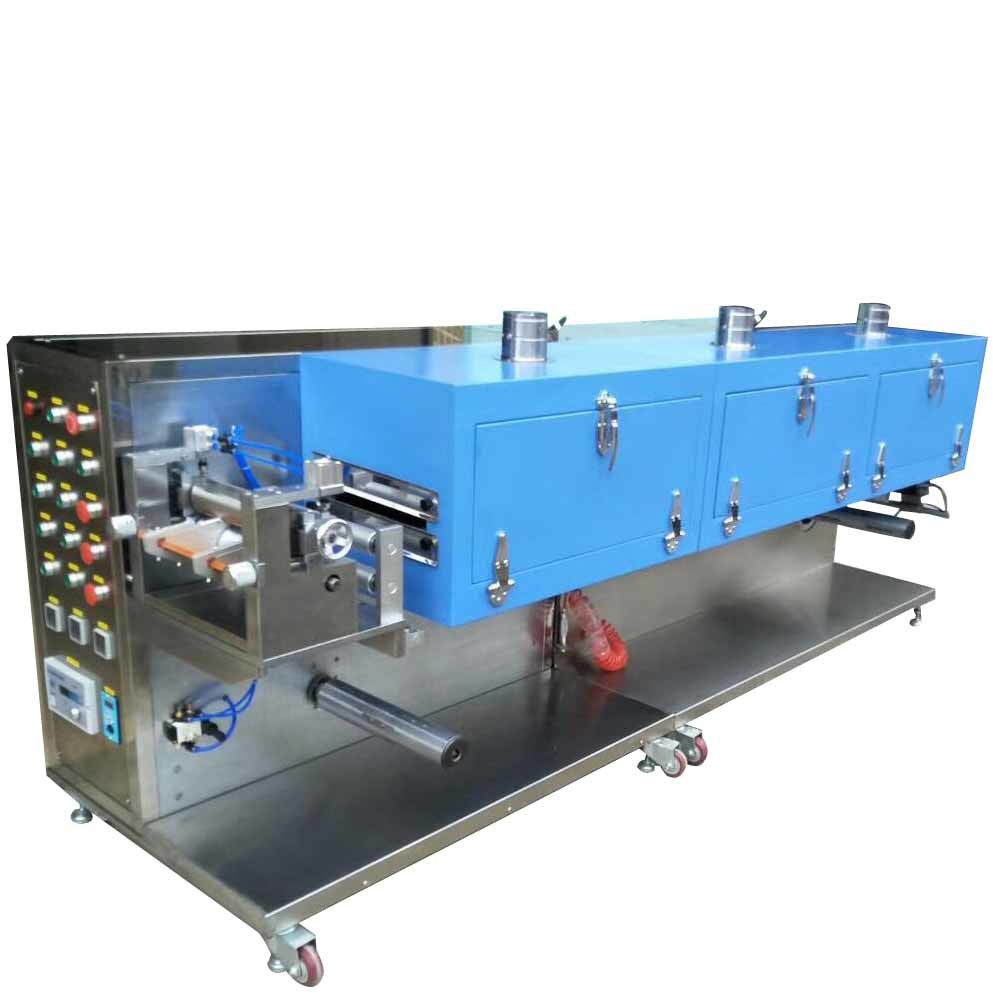

Battery Electrode Continuous Coating Machine With Drying Oven for laboratory

  • Battery Electrode Continuous Coating Machine With Drying Oven for laboratory
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CL300
Minimum Order Quantity 1 Sets
Price USD25000-29000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-CL300 Max Electrode Width 280mm
Coating Speed 0- 2m / Minute, Adjustable Coating Accuracy ≤ ± 0.003mm
Dimension(L*W*H) 1200*800*900mm(L*W*H) Weight About 1250 Kg
High Light

Battery Electrode Continuous Coating Machine

,

Coating Machine with 3 section Oven

,

Battery laboratory coating machine
Leave a Message
Product Description

Lab Roll To Roll Battery Electrode Continuous Coater Coating Machine With Drying Oven Customizable



Battery Electrode Continuous Coating Machine
1.ZK-CL300 Lab coating machine is a compact Roll to Roll continuous coater for battery electrode sheets with a small size for battery research labs.
2.This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final
electrode winding (reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically. 3.This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.
4.The Lab coating machine is with four Direction wheel in bottom, it can be removed easily for laboratory use.
1
Model specifications
ZK-CL300
2
Source voltage
AC 110v/220v, 50HZ/60HZ
3
Power
5500W
4
Warranty
1.5Year limited warranty with lifetime support
5
Max coating width
280mm
6
Coating speed
0- 2m / minute, adjustable
7
Coating mode
Continuous coating
8
Applicable matrix thickness
Aluminum foil : 11-30um
Copper foil : 8-30um
9
Mechanical tape speed
≤5m/min, with accuracy ±0.1m/min
10
Coating thickness
30-200um
11
Applicable slurry viscosity
1500-15000cps
12
Coating roller accuracy
≤1um
13
Coating accuracy
Double dry thickness accuracy error : <±4um
Single side dry thickness accuracy error : <±2um
Double coated alignment error : <±0.5mm
Average length of error : <±0.5mm
14
Roller inner diameter
3inches
15
Tension control
Low friction tension system
16
Struggle to control precision
<±0.3mm
17
Oven temperature
150°C adjustable, with accuracy ±1°C,
Independent PID adjustable
18
Weight
500kg
19
Dimension(L*W*H)
1200*800*900mm
