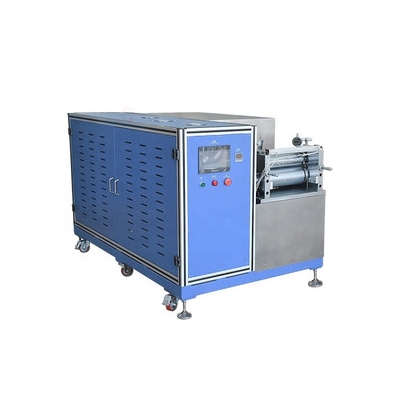

Electrode Battery Coating Machine Roll To Roll Transfer Type AC220V 50Hz

  • Electrode Battery Coating Machine Roll To Roll Transfer Type AC220V 50Hz
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CL180
Minimum Order Quantity 1 Sets
Price USD31000-39000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ZK-CZ300 Max Electrode Width ≤300mm
Coating Speed 100-600mm / Min (adjustable) Coating Accuracy ≤ ± 0.003mm
Dimension(L*W*H) 1800 × 810 × 1300 Mm(L*W*H) Weight About 1050 Kg
Highlight

Battery Electrode Coating Machine

,

Laboratory Transfer Coating Machine

,

Laboratory intermittent Coating Machine
Leave a Message
Product Description

  • Roll To Roll Transfer Type Electrode Coating Machine

    Experimental automatic gap coating machine

    It is suitable for the continuous sintering process of battery positive and negative plates. It is replaced by a three-roller transfer type. A very uniform thin coating is applied on the surface of the substrate and then automatically dried by the drying system. The operation of oven drying, and improve the uniformity of squeegee and drying efficiency.


    1
    model
    ZK-CZ300
    2
    main feature
    Automatic tape feeding, automatic winding, adjustable coating tension
    Equipped with a drying system, automatic coating drying
    Temperature control adopts PID adjustment system, with high control accuracy and reliable work
    Adopt hot air circulation system, which can make the temperature inside the box even and not easy to burn the pole pieces;
    With automatic stirring rod, the slurry is more uniform when coating, and the contact part of the slurry is stainless steel
    structure
    The main drive adopts frequency conversion speed control, wide speed range, constant and reliable speed, constant torque speed
    control system, stable performance and high coating accuracy
    Continuous uninterrupted coating, tidy winding
    Exquisite appearance, the sheet metal adopts three-dimensional geometric design, simple and beautiful
    3
    Painting method
    single-sided continuous
    4
    Applicable baseband
    copper foil, aluminum foil, etc
    5
    Pole piece width
    ≤300mm
    6
    Coating speed
    100-600mm / min (adjustable)
    7
    Coating accuracy
    ≤ ± 0.003mm
    8
    Coating roller bounce
    ≤2μm
    9
    Coating roller diameter
    Φ100mm
    10
    Unwinding diameter (Max)
    Φ250mm
    11
    Rewinding diameter (Max)
    Φ250mm
    12
    Tension control
    5-50N (adjustable)
    13
    Scraper positioning accuracy
    dial indicator display, accuracy ± 1μm
    14
    Drying temperature (Max)
    adjustable from room temperature to 150 ℃ with hot air circulation
    15
    Drying method
    upper and lower air blowing (resistance wire heating)
    16
    Heating area
    Area 1, 1.2 meters
    17
    Compressed air
    pressure 0.5Mpa ~ 0.7Mpa
    18
    flow rate
    0.04M3 / min
    19
    Power supply
    AC220V / 50Hz
    20
    Maximum power
    about 5kW
    21
    Dimensions
    length × width × height = 1800 × 810 × 1300
