Automatic Transfer Film Coater Machine For Lithium Battery Electrode Coating

  • Automatic Transfer Film Coater Machine For Lithium Battery Electrode Coating
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CZ300A
Minimum Order Quantity 1 Sets
Price USD52000-69000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-CZ300A Max Electrode Width ≤300mm
Coating Speed 0-5m/min, Adjustable Coating Accuracy ≤ ± 0.003mm
Baking Oven Stainless Steel, 1.5M/section, Dry Temperature : RT-150℃, Adjustable, With Accuracy ±3℃ Power 27KW
High Light

Electrode Film Coater Machine

,

Automatic coating machine

,

Multifunctional coating machine
Leave a Message
Product Description

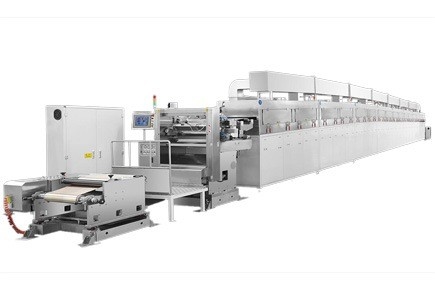

Lithium Battery Automatic Transfer Film Coater Machine For Electrode Coating

  • ZK-CZ300A Gap coating machine



This equipment is specially designed for small batch production. The equipment is equipped with automatic winding and unwinding device and high-precision correction device. Users can customize ovens of different lengths according to their needs. The length of a single oven is 1.5 meters. The equipment is also equipped with a roll changing device, which can replace foils more efficiently.ZK-CZ300A Gap coating machine




Model
Lithium ion Battery Coating Machine ZK-300A
Source voltage
380V
Power
27KW
Warranty
One Year limited warranty with lifetime support
Max electrode width
280mm (customizable)
Configuration
Put volume (with tension adjustment), coating, drying box 4.5m, main drive,
winding (with tension, rectifying);
Winding rectifying control precision
≤± 0.2mm
Baking oven
Stainless steel, 1.5M/section,
Dry temperature : RT-150℃, adjustable, With accuracy ±3℃
Coating speed
0-5m/min, adjustable
Coating accuracy
≤±0.003mm
Control pressure
0-25N, adjustable
Air compression
0.5-0.7MPa
Coating mode
Single face continuous coating
Application foil
Aluminum foil, Copper foil
Advantage
1 This equipment can realize gap/continuous coating
2 The oven is a heated hot air circulation structure
3 Equipped with tension control, automatic control for rewinding and deviation correction, and a rewinding platform.
4 All parts in contact with the
electrode have chrome plating or stainless steel corrosion resistance
