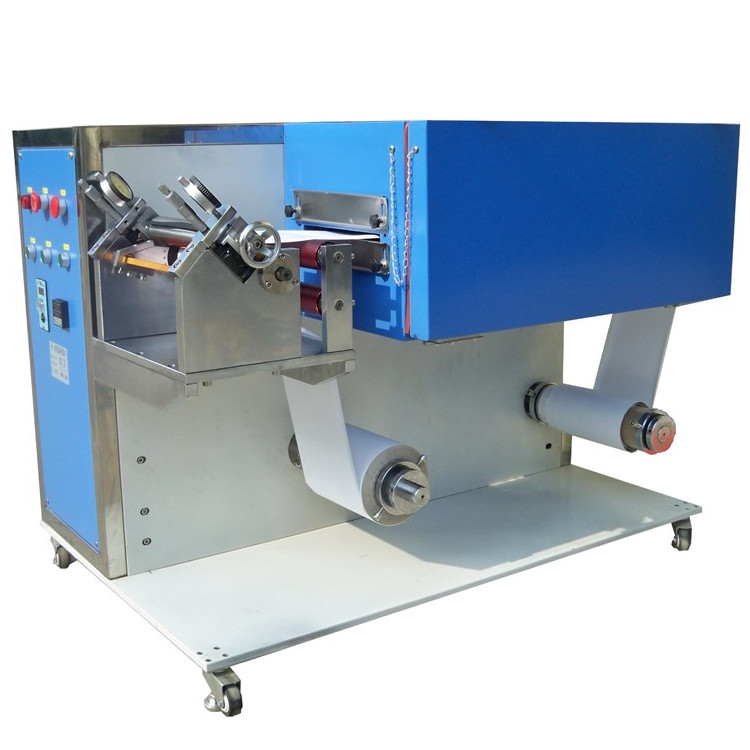

3000W Lab Coating Machine For Battery Making 180mm electrode width

  • 3000W Lab Coating Machine For Battery Making 180mm electrode width
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CL200
Minimum Order Quantity 1 Sets
Price USD15000-19000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-CL200 Max Electrode Width 180mm
Coating Speed 0-750 Mm / Minute, Adjustable Coating Thickness Accuracy 30-200um
Dimension(L*W*H) 1200*800*900mm(L*W*H) Weight About 550 Kg
High Light

Lab Coating Machine For Battery Making

,

Low Price Coater Machine

,

battery Coating System
Leave a Message
Product Description
  • ZK-CL200 Low Price Lab Coating System Coater Machine For Battery Making
  •
  • Laboratory coating machine
  •

1.ZK-CL200 Lab coating machine is a compact Roll to Roll continuous coater for battery electrode sheets with a small size for
battery research labs.
2.This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final
electrode winding (reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically. 3.This
lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.
4.The Lab coating machine is with four Direction wheel in bottom, it can be removed easily for laboratory use.



1
Model specifications
ZK-CL200
2
Source voltage
AC 110v/220v, 50HZ/60HZ
3
Power
3000W
4
Warranty
1.5Year limited warranty with lifetime support
5
Max coating width
180mm
6
Coating speed
0-750 mm / minute, adjustable
7
Coating mode
Continuous coating
8
Applicable matrix thickness
Aluminum foil : 11-30um
Copper foil : 8-30um
9
Mechanical tape speed
≤5m/min, with accuracy ±0.1m/min
10
Coating speed
0-750 mm / minute, adjustable
11
Coating thickness
30-200um
12
Applicable slurry viscosity
1500-15000cps
13
Coating roller accuracy
≤1um
14
Coating accuracy
Double dry thickness accuracy error : <±4um
Single side dry thickness accuracy error : <±2um
Double coated alignment error : <±0.5mm
Average length of error : <±0.5mm
15
Roller inner diameter
3inches
16
Tension control
Low friction tension system
17
Struggle to control precision
<±0.3mm
18
Oven temperature
150°C adjustable, with accuracy ±1°C,
Independent PID adjustable
19
Weight
500kg
20
Dimension(L*W*H)
1200*800*900mm
