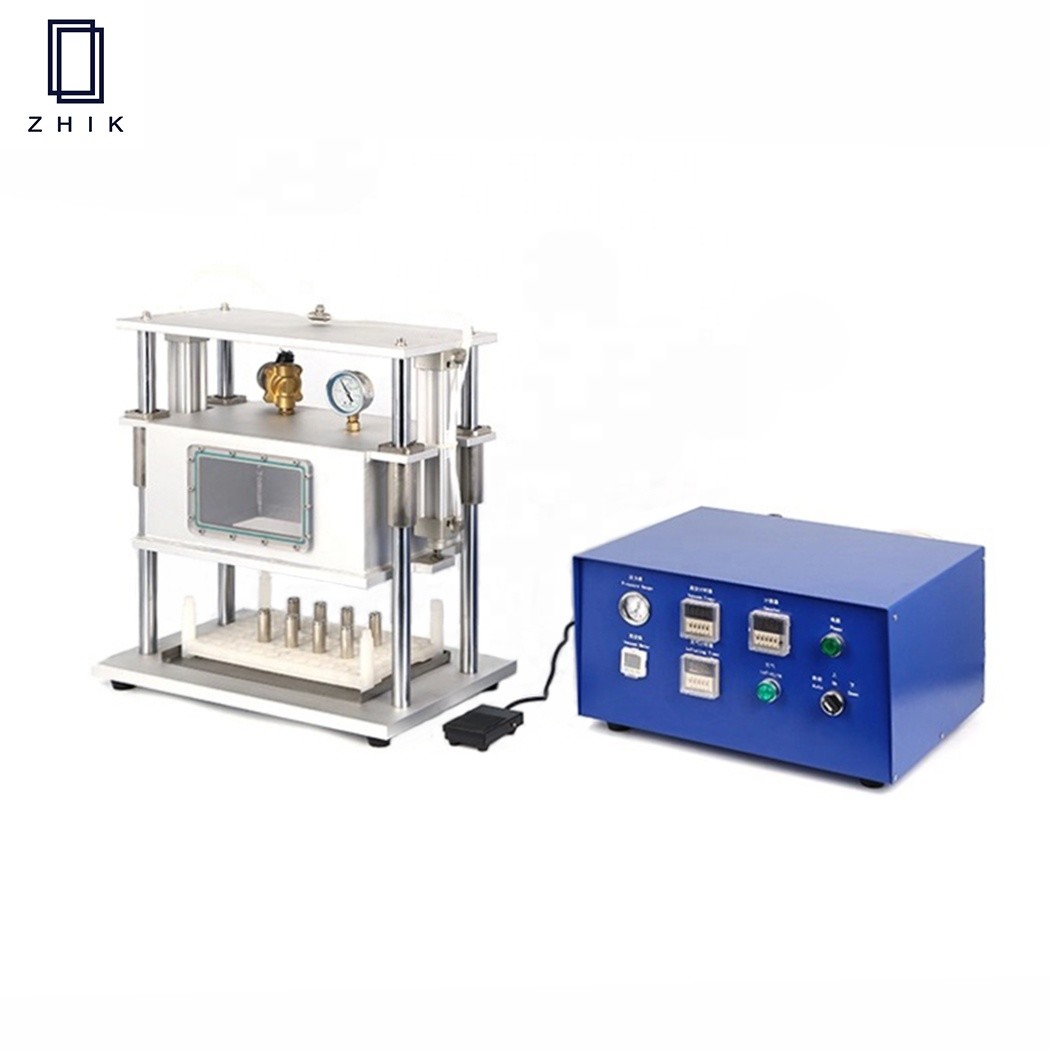

Lithium Battery Vacuum Diffusion Degassing Chamber
Model | ZK-VS300 | Working Voltage | AC100V/220V 50/60Hz |
---|---|---|---|
Max. Power | 100W | Compressed Air | 0.5-0.8Mpa |
Vacuum Box | 500mm(L) X 350mm(W) X 630mm(H) | Control Unit | 460mm(L) X 220mm(W) X 340mm(H) |
High Light | Lithium battery electrolyte diffusion box,Lithium Battery Vacuum Diffusion Degassing Chamber,Lithium battery vacuum diffusion box |
-
- Lithium Battery Vacuum Diffusion Degassing Chamber
ZK-VS300 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyteafter it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.
