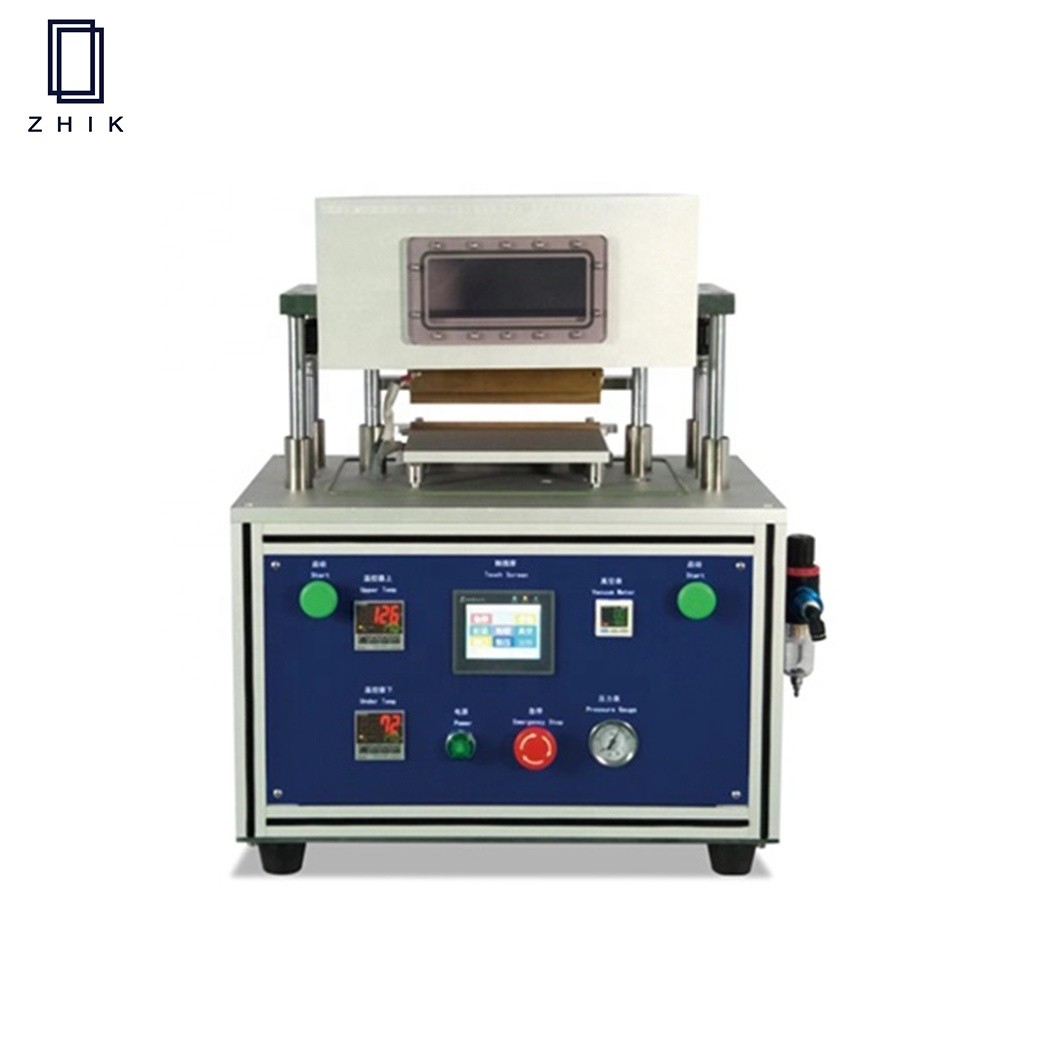

200W Vacuum Battery Cell Making Machine , Battery Sealing Machine OEM

  • 200W Vacuum Battery Cell Making Machine , Battery Sealing Machine OEM
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-VSM200
Minimum Order Quantity 1 Piece
Price USD4800-5500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-VSM200 Working Voltage AC100V/220V 50/60Hz
Max. Power 200W Compressed Air 0.5~0.7Mpa
Temp Accuracy ±1.5℃ Max Sealing Size 200mm
High Light

Battery Heat Sealing Machine

,

Vacuum Sealing Machine

,

Lithium battery final sealing machine
Leave a Message
Product Description

  •

  • Secondary Vacuum Sealing Machine Used For Flexible Packaging Battery
  •
Secondary vacuum sealing machine is mainly used for flexible packaging battery using vacuum heat sealing side;The machine vacuum
chamber and through precise control of pneumatic heat sealing components, automatic completion of vacuum thermal battery aluminum
composite membrane shell encapsulation.
Main feature
* electrolyte separation processing mechanism,separate extra electrolyte. * the machine has the pressure gauge, when pressure, vacuum and temperature did not arrive to target setting,the equipment will not run automatically, to ensure the batteries encapsulation effect consistency.





1
Chamber material
The chamber is made from Aluminum alloy, non-corrosive
2
Vacuum degree
≤-95Kpa (Buyer prepare vacuum pump)
3
Sealing head temp
Room temp ~250℃. it’s adjustable
4
Temp accuracy
±1.5℃
5
Heat sealing pressure
0~7Kg/cm2 (adjustable)
6
Heat sealing time
0~99s adjustable
7
Sealing width
5mm
8
Max sealing size
200mm
9
Sealing head flatness
Test by triple carbon carbonless paper, set the head air pressure at 0.6MPa, the temperature at 200 degrees, the extrusion of the
seal evenly
10
Air compressor working speed
≥180 tims/h
11
Power
300W heating pipe, the power consumption around 0.6KW when heating .
12
Power supply
220V/50Hz
13
Power: 50W
50W
14
Compressed air
0.5~0.7Mpa
