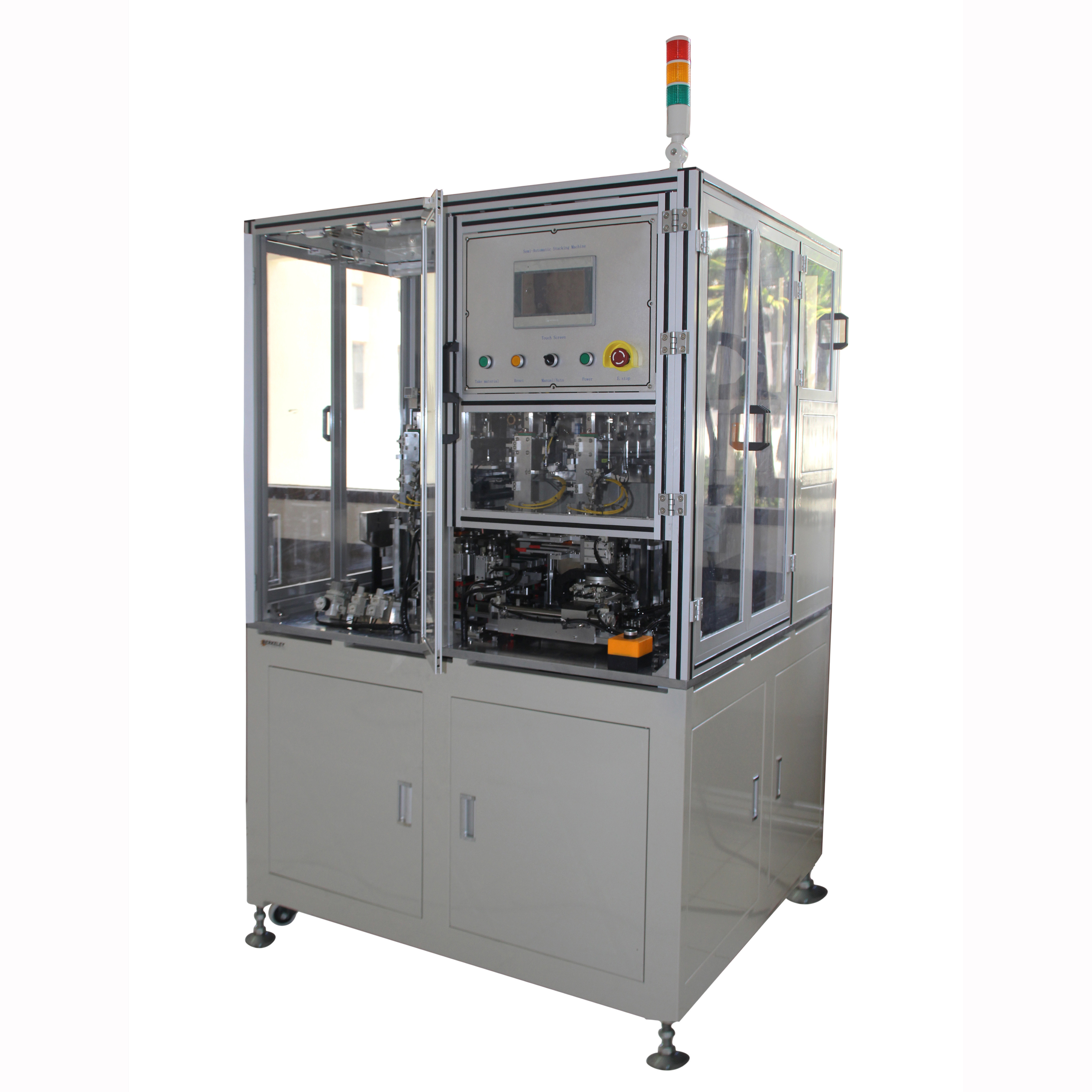

Automatic Battery Cell Making Machine , Lithium Battery Stacking Machine 5KW ISO

  • Automatic Battery Cell Making Machine , Lithium Battery Stacking Machine 5KW ISO
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-DP150A
Minimum Order Quantity 1 Piece
Price USD25000-55000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-DP150A Power 5KW
Compressed Air ≥0.6MPa Stackable Layers Up To 500 Layers
Diameter Of Diaphragm Roll ＜320mm Equipment Weight About 1000KG
High Light

Lithium Battery Stacking Machine

,

Pouch Cell Stacking Machine

,

Stacking Machine For Electrode
Leave a Message
Product Description

Full Automatic Layer By Layer Stacking Machine For Lithium Battery Pouch Cell Electrode And Separator Assembly Productio



Lithium battery stacking machine

★ This machine is designed with servo Z type lamination method, high reliability and compact structure
★ The left and right feeding trays adopt automatic lifting film feeding, and have the electrode alarm function
★ Diaphragm automatic unwinding, active speed tracking, constant tension, continuous deviation correction, to ensure that the lamination and winding are neat and consistent;
★ The pressure of the lamination table is adjustable to ensure a constant height of the cell lamination table
1
power supply
220V / 50Hz; 220V mains power can be used directly
2
power
5.5KW
3
Compressed air
≥0.6MPa
4
Equipment weight
about 1000KG
5
Equipment size
length x width x height: 2180mmx1950mmx190mm
6
Diameter of diaphragm roll
＜320mm

Stackable Size
* Min 39 mm L x 27 mm W
* Max 160 mm L x 100 mm W

Stackable Layers
Up to 500 layers

Stacking Speed
Up to 1 layer per 2 seconds
7
Max. Electrode Thickness
Piled up thickness < 30 mm
8
Aligning Accuracy
±0.25 mm for stacked electrodes
