Rolling Groove Battery Making Machine for Cylindrical Cell 18650 26650 32650
| Place of Origin | China |
|---|---|
| Brand Name | ZHIK |
| Certification | CE IOS |
| Model Number | ZK-CK2500 |
| Minimum Order Quantity | 1 Piece |
| Price | USD16500-20000/Piece |
| Packaging Details | Wooden packing |
| Delivery Time | 24 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15set/month |
Product Details
| Model | ZK-CK2500 | Power | 1KW |
|---|---|---|---|
| Work Pressure | 6kgf/cm2 | Compatibility | Scope Of Application: 10/14/17/18/21/26/32 |
| Product Dimensions | 900(L)x650(W)x1230(H)mm | Weight | 450Kg |
| High Light | Auto Grooving Machine,Cylindrical Battery Grooving Machine,28650 Cylindrical Battery Grooving Machine |
||
Product Description

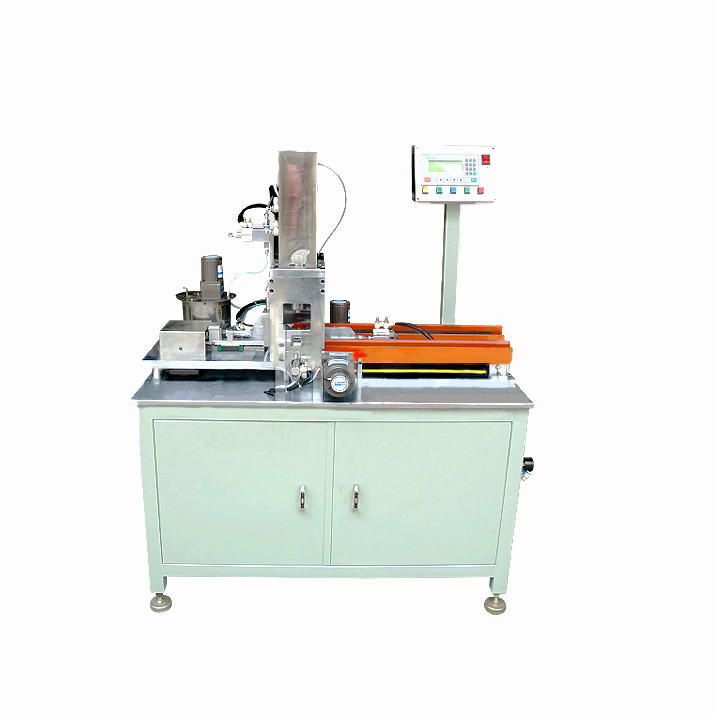

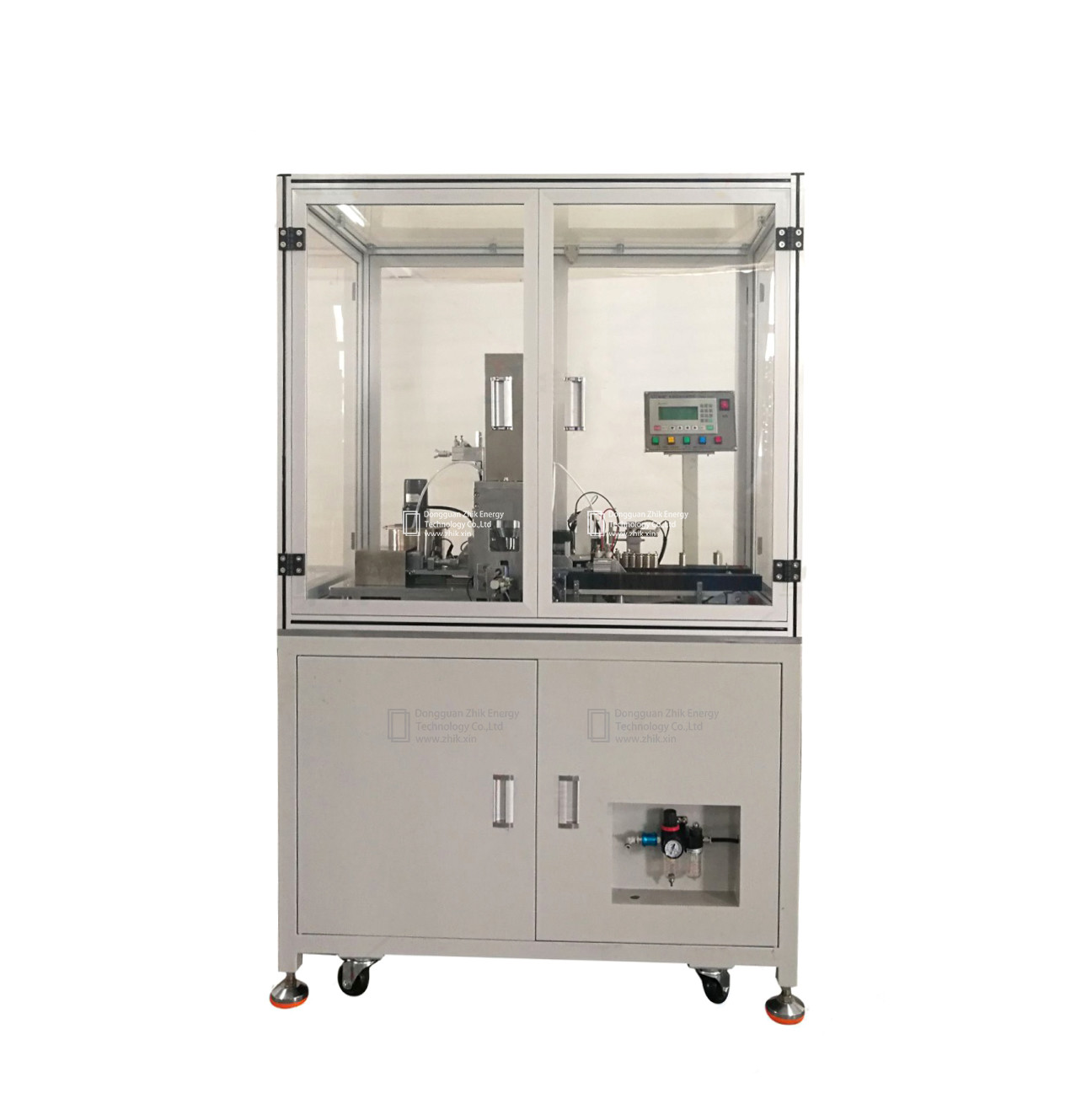

Cylindrical Cell Rolling Groove Machine For 18650 26650 32650
Automatic Cylindrical Grooving Machine
● Mainly suitable for cylindrical lithium-ion, high-capacity nickel-hydrogen, nickel-cadmium battery pits (rolling grooves) and gluing;
● Adopt three-phase motor power, linear trough, and the whole row of magnetic rods to collect and discharge batteries;
● The battery rolling groove is positioned at the bottom and top of the shell, the forming accuracy of the pit is high, and the battery height after sealing is consistent;
● After adding the surface pad in the rolling groove, it can effectively increase the space inside the battery;
● The cam precision rolling groove is not affected by the air pressure change, and the micrometer adjusts the depth and height of the rolling groove;
● Precision gluing pump and stainless steel gluing bucket, the gluing is uniform, clean and stable, which can effectively improve the sealing performance of the battery;
Technical Parameter
